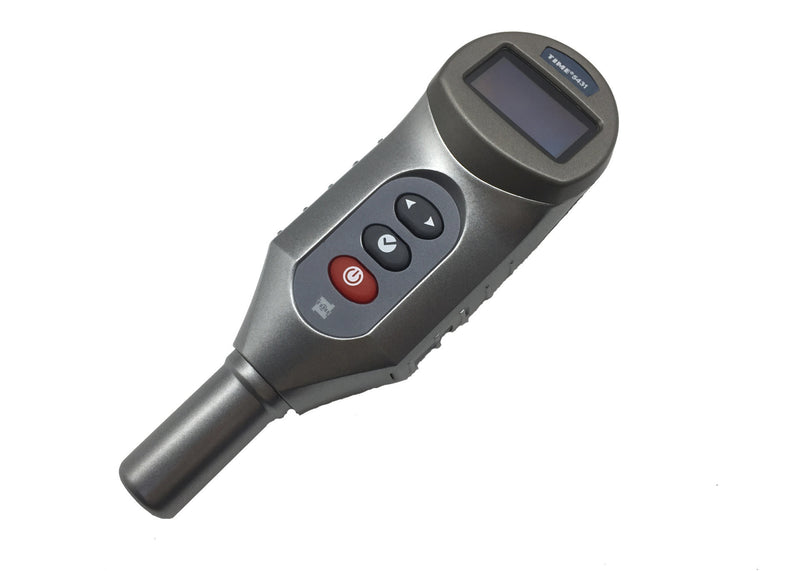

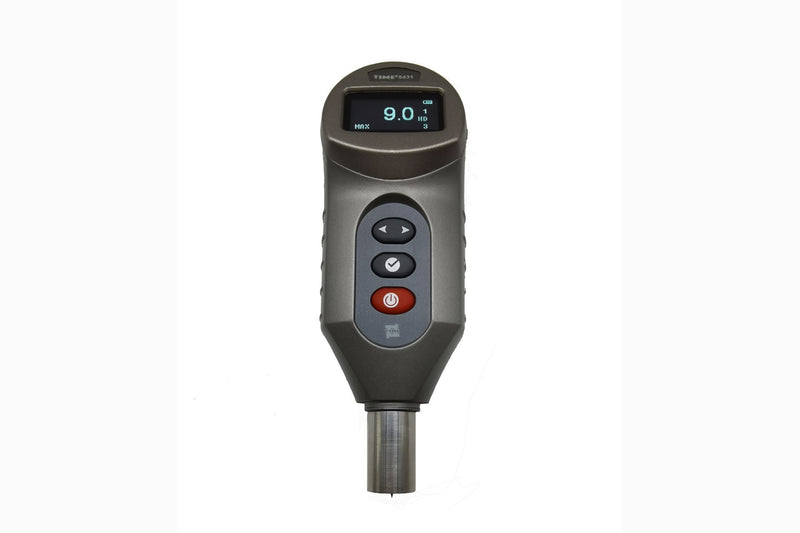

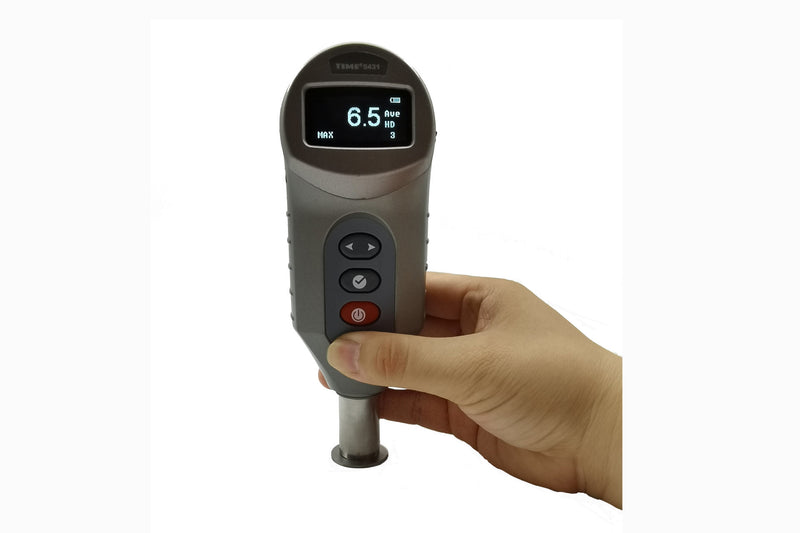

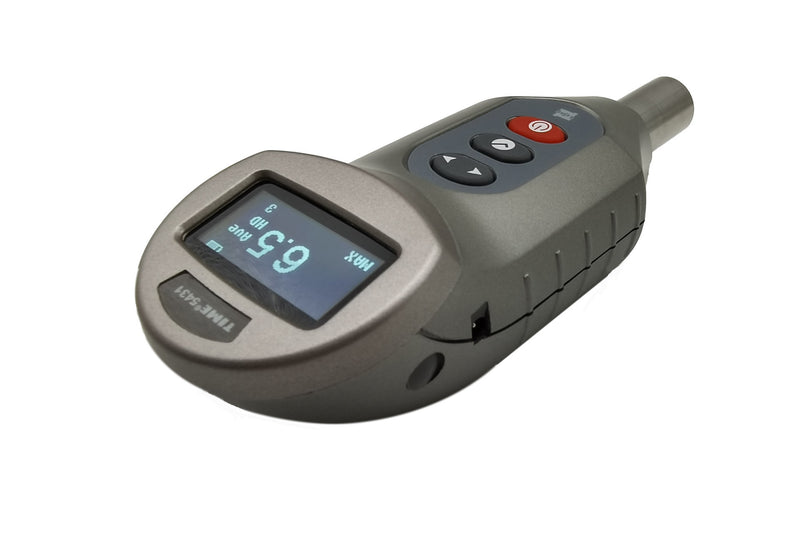

TIME5431 Digital Shore D Durometer (Hardness Tester)
TIME5431 Digital Shore D Durometer (Hardness Tester)
TIME5431 Digital Shore D Durometer (Hardness Tester)
TIME5431 Digital Shore D Durometer (Hardness Tester)
TIME5431 Digital Shore D Durometer (Hardness Tester)

TIME5431 Digital Shore D Durometer (Hardness Tester)

SKU TIME5431
$0.00 - $0.00
$0.00
$0.00 - $0.00
$0.00
Secure Payment
24/7 Customer Support
30-Day Returns
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • Shop Pay
  • Union Pay
  • Visa
Request A Quote (For Bulk Orders)
Returns & Warranty

Warranty
All products are covered by the manufacturer's warranty. Warranty terms vary by manufacturer and product.

Returns
Items can be returned within 7 days of receipt. Returned items must be unopened, unused and in their original packaging, with all accessories and documentation included.

Warranty claims and enquiries
For warranty claims, returns or product-specific enquiries, contact us at support@testingcore.com.

The TIME5431 is a digital Shore D durometer for testing the hardness of hard plastics and rubbers.
  • Built-in displacement sensor; compact, easy to carry and convenient to use
  • 1.3-inch OLED display screen, 128 x 64 graphic dot matrix, with clear, easy-to-read information
  • Three working modes to suit different testing requirements: real-time, peak-value lock and timed lock
  • Optional operation stand
  • Stores 200 groups of average peak values
  • USB interface for PC connection
  • Optional data processing software outputs to Microsoft Word or Excel for quality control and management
  • Preset upper and lower limits with out-of-limit alarm for batch testing
  • Voltage status display with low-voltage prompt
  • Automatic shutdown when idle, with adjustable shutdown time. The function can be turned off as needed
Measuring Range 0–100 HD
Tolerance ≤ ±1 HD (within 20–90 HD)
Resolution 0.1 HD
Power Built-in rechargeable lithium battery
Dimensions 173 x 56 x 42mm
Weight 200g

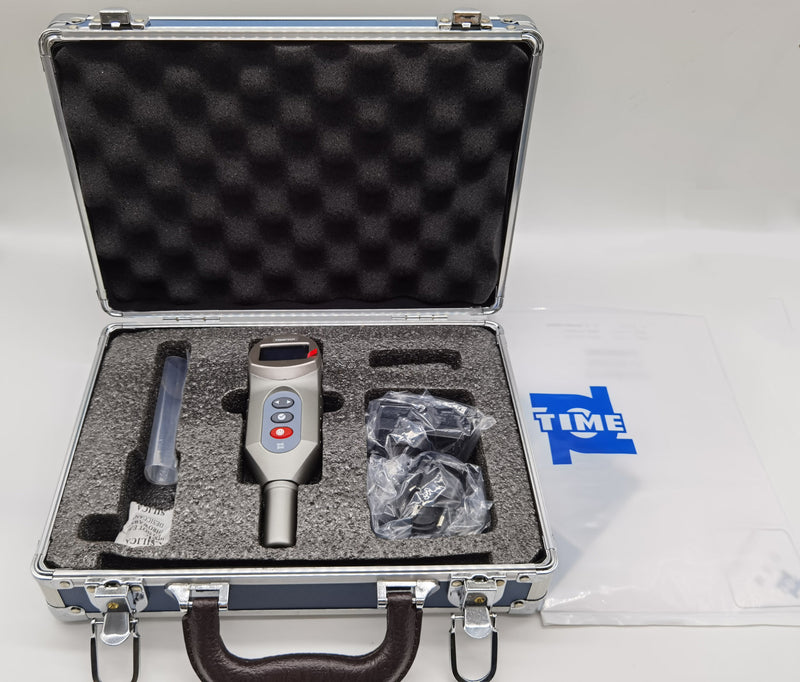

TIME5431 main unit Included
Median block Included
Charger Included
PC software Available separately
USB communication cable Available separately
Operation stand Available separately
