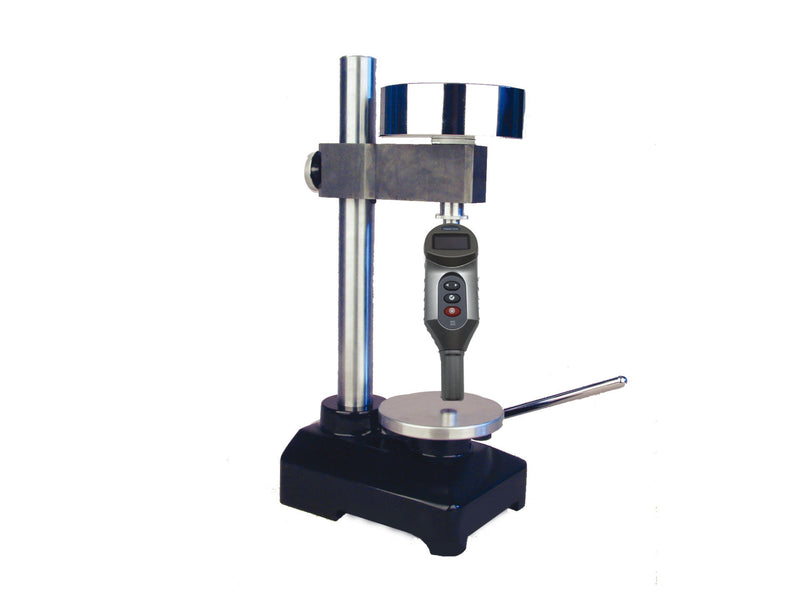

An operating stand for TIME Shore hardness testers. The stand applies a constant measuring force, improving measurement accuracy and repeatability.
  • TIMEA521 for the TIME5430, TIME5432 and TIME5432C
  • TIMEA522 for the TIME5431
  • TIMEA523 for the TIME5433
  • Gives good measurement accuracy and repeatability
  • Constant measuring force eliminates errors caused by inconsistent hand-applied force
  • The operating handle applies force evenly to the sample, and the testing height can be adjusted for different sample thicknesses
TIMEA521 TIMEA522 TIMEA523
Compatible Tester TIME5430, TIME5432, TIME5432C TIME5431 TIME5433
Max. Sample Thickness 80mm 80mm 80mm
Max. Working Table Diameter Ø116mm Ø116mm Ø116mm
Max. Lifting Displacement 24mm 24mm 24mm
Max. Touch Distance Between Pressure Foot and Working Table 0.05mm 0.05mm 0.05mm
Dimensions 420 x 200 x 170mm 420 x 200 x 170mm 420 x 200 x 170mm
Weight 18kg 22kg 17kg
Operating stand 1
Handle 1
Weight 1
Connecting rod 1
TIME certificate 1
Warranty card 1
Instruction manual 1
