TIME5631 Smart Ultrasonic Hardness Tester with Bluetooth App

TIME5631 Smart Ultrasonic Hardness Tester with Bluetooth App

SKU TIME5631
$0.00 - $0.00
$0.00
$0.00 - $0.00
$0.00
Secure Payment
24/7 Customer Support
30-Day Returns
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • Shop Pay
  • Union Pay
  • Visa
Request A Quote (For Bulk Orders)
Returns & Warranty

Warranty
All products are covered by the manufacturer's warranty. Warranty terms vary by manufacturer and product.

Returns
Items can be returned within 7 days of receipt. Returned items must be unopened, unused and in their original packaging, with all accessories and documentation included.

Warranty claims and enquiries
For warranty claims, returns or product-specific enquiries, contact us at support@testingcore.com.

The TIME5631 is an ultrasonic hardness tester that causes minimal damage to the surface of the test piece and is classed as a non-destructive hardness tester. It offers fast detection speed and high accuracy, and can measure the hardness of locally hardened parts in confined spaces as well as thin parts, making up for the limitations of desktop hardness testers.

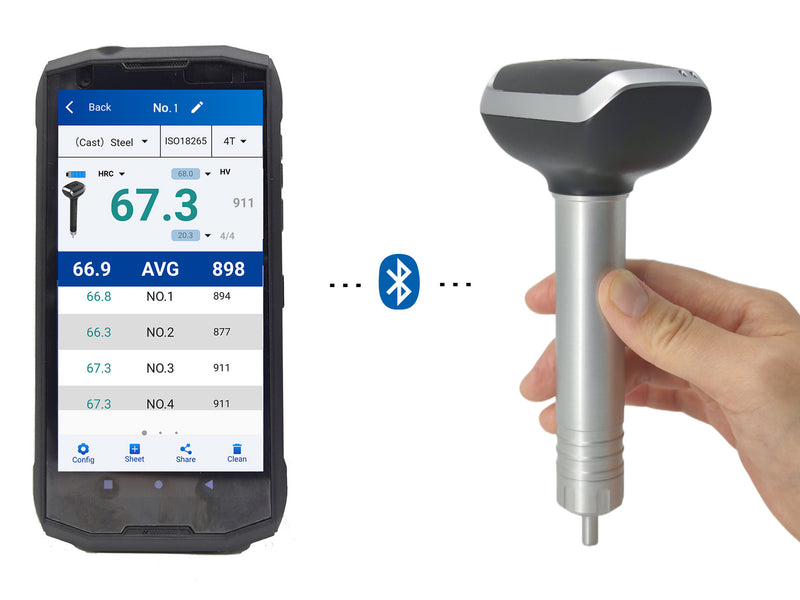

  • Consists of a smartphone and a smart probe that communicate via Bluetooth
  • Hardness values measured by the smart probe are transmitted to the smartphone in real time
  • Smart probe is powered by two AA batteries, which are easy to replace
  • Smart probe software can be upgraded remotely
  • Battery indicators: icon on the smartphone, and a red low-battery light on the smart probe
  • Hardness value conversion: HV, HB, HRC, HRA, HRB
  • Storage on the smartphone and in the cloud
  • Hardness value calibration for selected materials
  • Measurement records can include additional information such as photos, videos and location, among others
  • Post-measurement data processing, such as customised work orders, real-time data sharing and report generation, among others
  • Automatic shutdown
Measuring Range 80–1400 HV; 76–618 HB; 20.3–68 HRC; 41–105 HRB
Loading Force 10N
Probe Standard 10N smart probe
Measuring Accuracy ±4% (< 500 HV); ±5% (500–800 HV); ±6% (> 800 HV)
Repeatability 8% (< 250 HV); 6% (≥ 250 HV)
Indication Resolution 1 HV
Indenter Vickers diamond indenter
Hardness Scales HV, HB, HRC, HRB
Display Smartphone display
Language Simplified Chinese and English
Power 2 x AA batteries; continuous working time of no less than 24 hours
Dimensions 175 x 85 x 55mm
Weight 220g
Ultrasonic hardness probe 1
Industrial phone 1
Standard hardness block 1
Probe protective cover 1
User manual 1
Test stand TIMEA531 Available separately
SIM card Available separately
Measurable Workpieces Belt and plate workpieces, hardened layers on moulds, blades and tooth surfaces, flange edges, wheels, turbine rotors, thin plates, shafts and pipes, containers, knife edges and welded parts, among others
