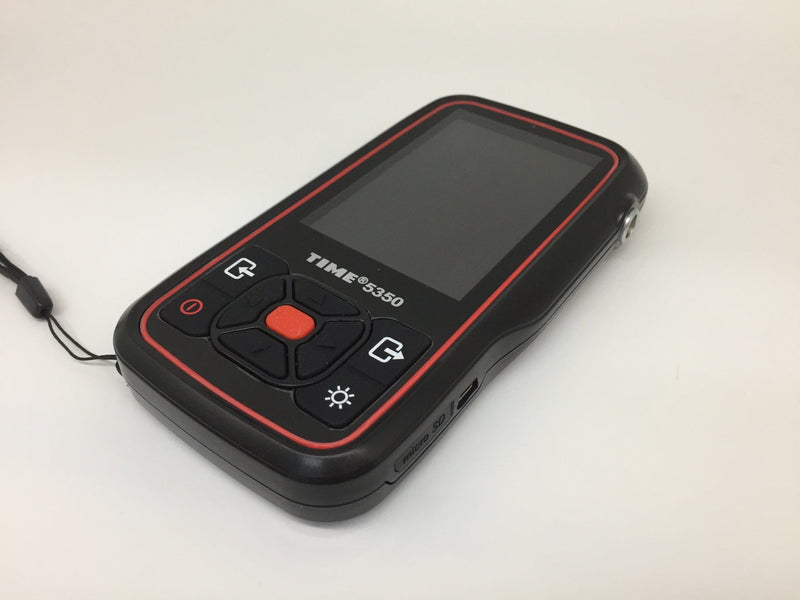

TIME Group manufactured the first Leeb hardness tester in China in 1989. The TIME5350 is a fully featured model in the TIME range. Its mobile phone-style design makes it easy to carry and well suited to on-site hardness testing. A MicroSD card of up to 32GB can be used to store measured values.
  • Simple menu with instructions, easy and convenient to use
  • Conversion between common hardness scales (HL, HV, HB, HRC, HRB and HS), plus conversion to tensile strength
  • 7 optional impact device types with auto-recognition; the universal standard D-type impact device is included
  • 3.5-inch 320 x 480 dot matrix LCD screen displays information clearly, with three backlight levels to suit different conditions
  • Memory of 200 groups of data, including single values, average value, date, impact direction, number of measurements, material and hardness scale
  • Upper and lower limit settings with audible alarm
  • Transfer to PC via USB or RS232 in Word and Excel formats, with PC software included
  • MicroSD card of up to 32GB can be used to store measured values
  • Optional removable printer, so test values can be printed directly
  • Built-in conversion table; HB values can be read directly when a D or DC impact device is fitted
  • Software calibration function
Measuring Range 170–960 HLD
Hardness Scales HL, HB, HRB, HRC, HV, HS
Measuring Direction 360°
Tolerance ±6 HLD (at HLD = 760)
Repeatability 6 HLD (at HLD = 760)
Power 5V / 500mA
Charging Time 5 hours
Humidity ≤ 90%
Operating Temperature 0°C to 40°C
Dimensions 149 x 82 x 23mm
Weight 200g
Main unit 1
Impact device type D 1
Test block HLD 1
Small support ring 1
Charger 1
Cleaning brush 1
MicroSD card 1
Communication cable 1
TIME certificate 1
Warranty card 1
Instruction manual 1
