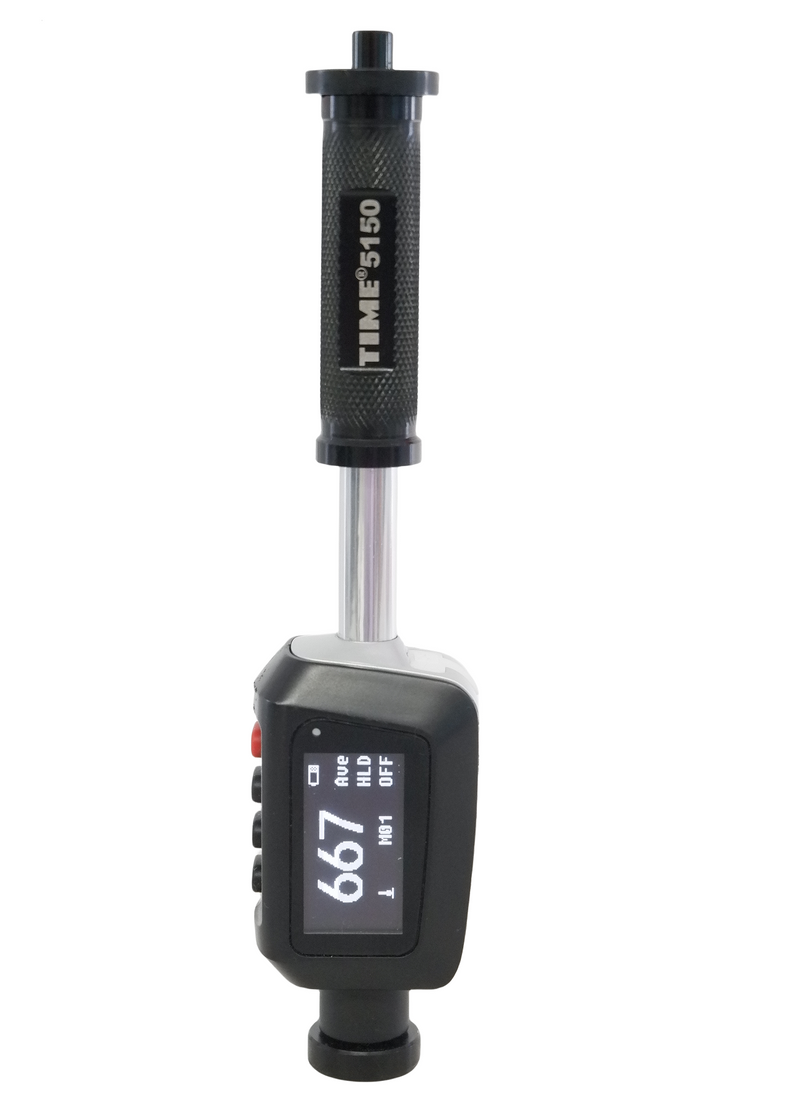

TIME5150 Bluetooth Leeb Hardness Tester with OLED Display

TIME5150 Bluetooth Leeb Hardness Tester with OLED Display

SKU
$0.00 - $0.00
$0.00
$0.00 - $0.00
$0.00
Secure Payment
24/7 Customer Support
30-Day Returns
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • Shop Pay
  • Union Pay
  • Visa
Request A Quote (For Bulk Orders)
Returns & Warranty

Warranty
All products are covered by the manufacturer's warranty. Warranty terms vary by manufacturer and product.

Returns
Items can be returned within 7 days of receipt. Returned items must be unopened, unused and in their original packaging, with all accessories and documentation included.

Warranty claims and enquiries
For warranty claims, returns or product-specific enquiries, contact us at support@testingcore.com.

The TIME5150 is the latest integrated Leeb hardness tester developed by TIME, using a D-type impact device. Its new design is portable and can be operated with one hand. A large, high-contrast dot matrix OLED display, a redesigned interface and flexible button operation keep information clear and convenient to read, and the tester also has Bluetooth functionality.
  • Compact and highly portable
  • 128 x 64 graphic dot matrix OLED display, clear and showing detailed information
  • Customised material function lets users generate their own hardness conversion table through comparative tests
  • Automatic identification of common impact directions
  • Stores 100 measurement averages
  • Upper and lower hardness limits can be preset, with out-of-tolerance prompts to make batch testing easier
  • Can switch to international hardness conversion tables for reference
  • Software calibration of indications
  • Connects wirelessly to a Bluetooth printer to print measurement data
  • Connects via Bluetooth to a dedicated smartphone measurement app for extended functions (reserved for future use)
  • Automatic shutdown, with adjustable shutdown time or the option to turn it off
  • Built-in rechargeable lithium battery, charged via a Type-C socket. The battery has no memory effect, is easy to charge and has a long life
Measuring Range 170–960 HLD
Tolerance ±6 HLD (at 790 ±40 HLD)
Repeatability 6 HLD (at 790 ±40 HLD)
Measuring Direction 360°
Hardness Scales HL, HB, HRB, HRC, HV, HS, HRA
Display OLED display screen
Data Storage 100 groups of data
Upper/Lower Limit Setting 170–960 HLD
Customised Materials 5
Wireless Communication Standard Bluetooth 4.2
Power 5V / 1A
Dimensions 177 x 38 x 29mm
Weight 120g
