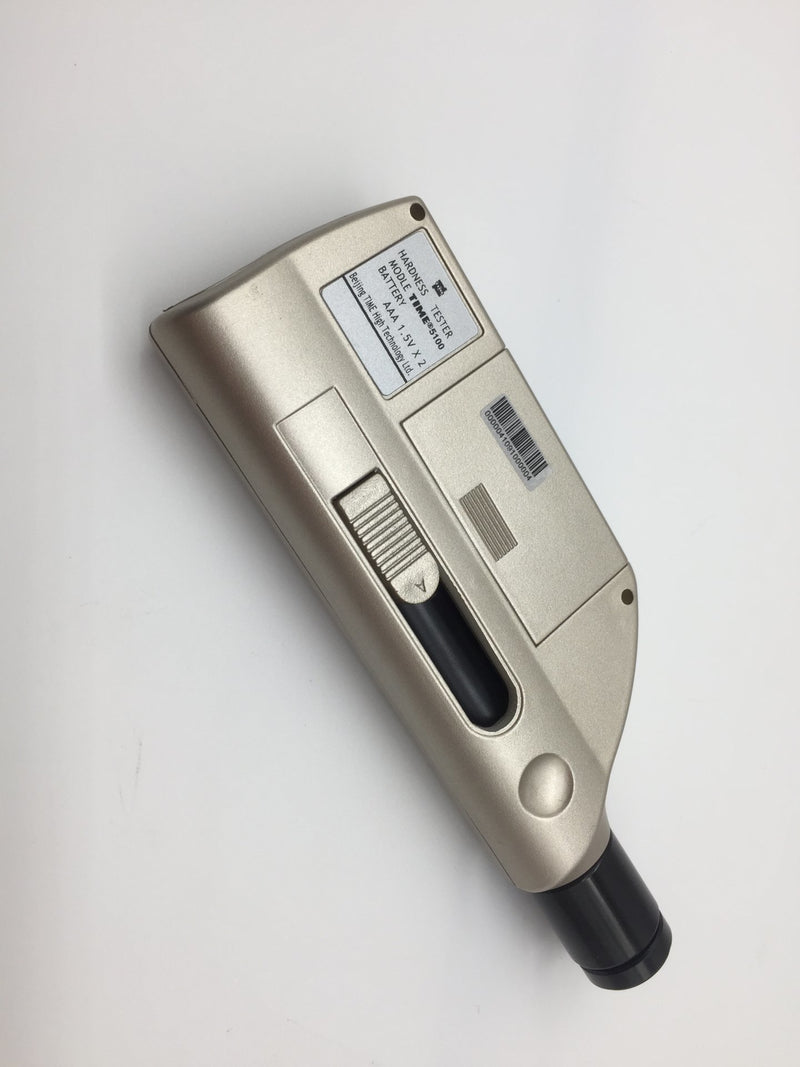

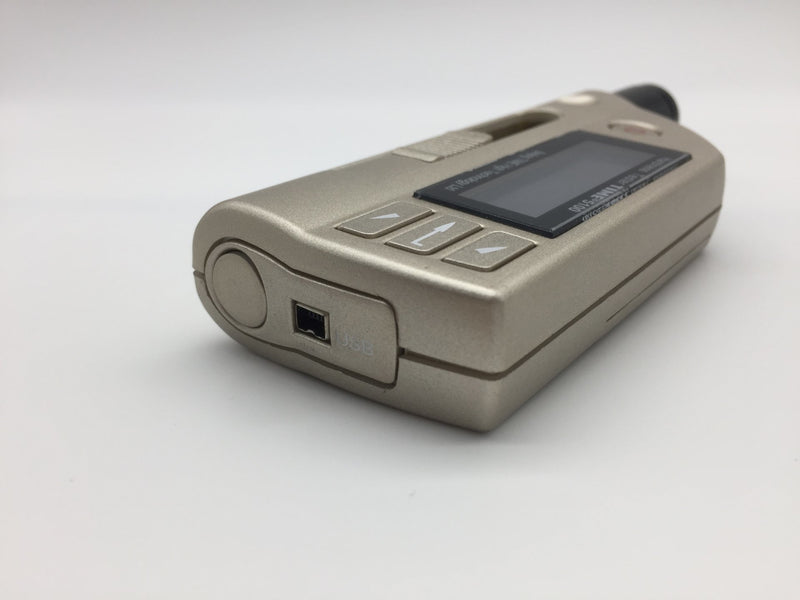

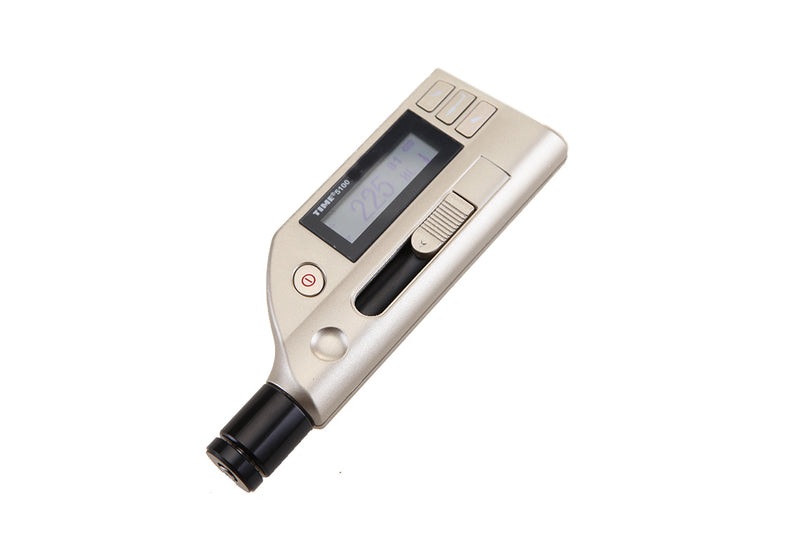

TIME5100 Pen Type Leeb Hardness Tester
TIME5100 Pen Type Leeb Hardness Tester
TIME5100 Pen Type Leeb Hardness Tester
TIME5100 Pen Type Leeb Hardness Tester

TIME5100 Pen Type Leeb Hardness Tester

SKU TIME5100
$0.00 - $0.00
$0.00
$0.00 - $0.00
$0.00
Secure Payment
24/7 Customer Support
30-Day Returns
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • Shop Pay
  • Union Pay
  • Visa
Request A Quote (For Bulk Orders)
Returns & Warranty

Warranty
All products are covered by the manufacturer's warranty. Warranty terms vary by manufacturer and product.

Returns
Items can be returned within 7 days of receipt. Returned items must be unopened, unused and in their original packaging, with all accessories and documentation included.

Warranty claims and enquiries
For warranty claims, returns or product-specific enquiries, contact us at support@testingcore.com.

The TIME5100 Pen Type Hardness Tester is suitable for quick hardness testing of metal materials, particularly on-site testing of large, non-transportable components.
  • Lightweight mini unit with a simple menu, easy and convenient to use
  • Integrated D-type impact device for the majority of hardness testing requirements
  • Conversion between hardness scales (HL, HV, HB, HRC, HRB and HS)
  • USB interface for PC connection. The optional Dataview TH51X software, designed for the TH51X series, offers online measurement and offline data analysis, including curve charts, data sheets, tolerance limit settings and data reports
  • Connects to a printer via RS232, so test values can be printed directly
  • Measures in any direction (360°)
  • Automatic identification of impact direction
  • Memory of 270 readings in 9 groups
  • Backlight for convenient use in the dark
  • Upper and lower limit settings
  • Runs on 1.5V AAA batteries, with battery level shown on the display
  • Auto power-off
Impact Device D (integrated)
Hardness Scales HLD, HB, HRC, HRB, HV, HS
Accuracy ±6 HLD (at 760 ±30 HLD)
Measuring Direction 360°
Memory 270 average readings in 9 group files
Output RS232 to printer
Min. Surface Roughness of Workpiece 1.6 μm (Ra)
Max. Workpiece Hardness 960 HLD
Min. Workpiece Radius (Convex/Concave) 50mm (10mm with support ring)
Min. Workpiece Weight 2–5kg on stable support; 0.05–2kg with compact coupling
Min. Workpiece Thickness (Coupled) 5mm
Min. Hardened Layer Thickness 0.8mm
Continuous Working Time 8 hours (without backlight)
Power 1.5V AAA batteries
Operating Temperature 0°C to 40°C
Dimensions 155 x 55 x 25mm
Weight 180g
Main unit 1
Test block HLD 1
USB connecting cable 1
Cleaning brush 1
AAA 1.5V battery 2
TIME certificate 1
Warranty card 1
Instruction manual 1
Support rings Available separately
Dataview software Available separately
