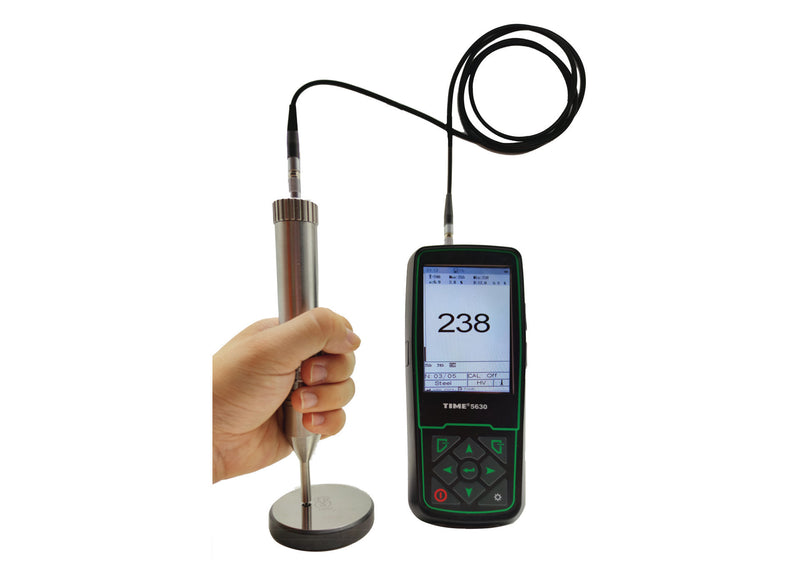

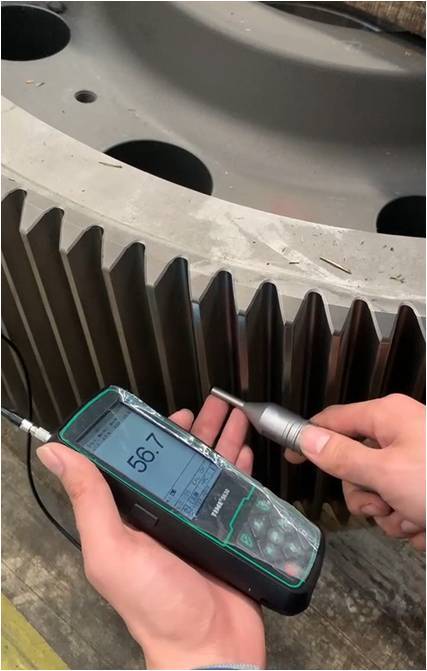

The TIME5630 ultrasonic hardness tester non-destructively measures metals and alloys with a minimum thickness of 3mm. Applications include strip and plate workpieces, hardened layers on moulds, blades and tooth surfaces, flange edges, wheels, turbine rotors, thin plates, shafts and pipes, containers, knife edges and welded parts, among others.
  • Non-destructive hardness tester for hardened layers and thin workpieces
  • 3.5-inch colour LCD screen
  • Battery status indicator with low-battery alarm
  • Conversion between common hardness scales (HV, HB, HRC, HRB)
  • Hardness value calibration, with the option to delete calibrations
  • Material selection, mainly steel and cast steel. After calibration with the standard test block, it can also measure alloy tool steel, special cast iron and non-ferrous metals
  • Large memory: built-in 8GB SD card
  • Measures freely in all directions, with no compensation needed
  • Displays maximum, minimum and average values, standard deviation, number of measurements and previous measurement values, among others
  • Upper and lower limit settings, with an alarm when readings fall outside the limits
  • Rechargeable lithium-ion battery with more than 30 hours of continuous working time

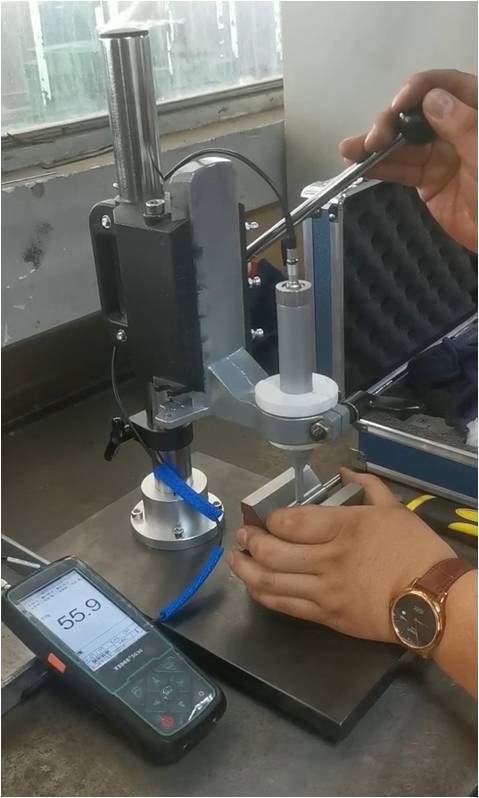

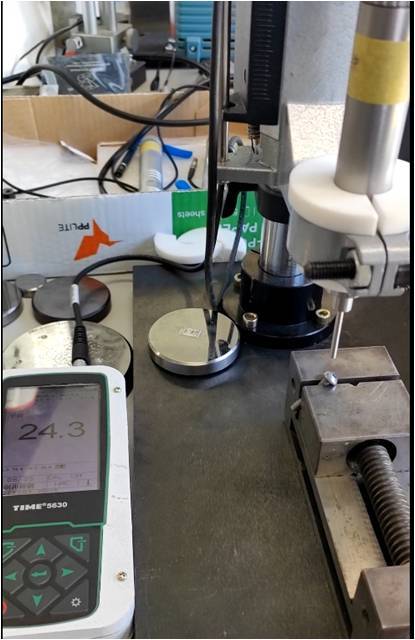

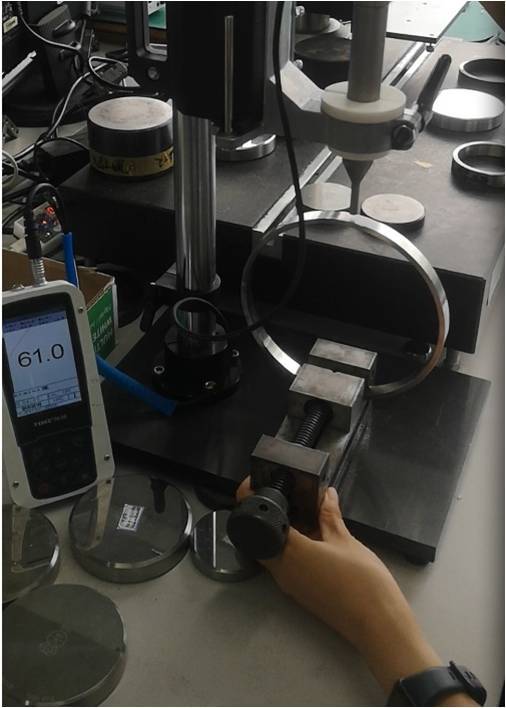

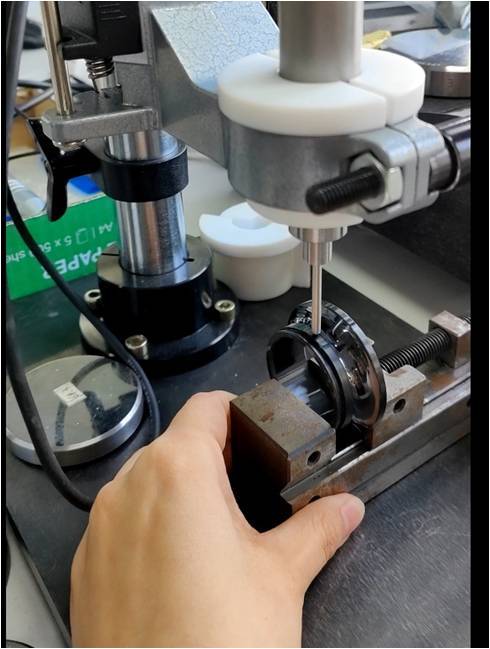

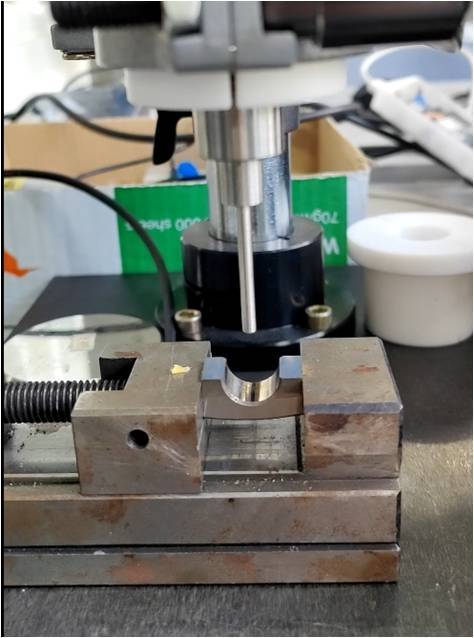

  • Optional portable stand improves measurement accuracy
Loading Force 10N, 20N, 50N (10N probe included; 20N and 50N probes optional)
Measuring Range 80–1400 HV; 76–618 HB; 20.3–68 HRC; 41–105 HRN
Measuring Accuracy ±4% (< 500 HV); ±5% (500–800 HV); ±6% (> 800 HV)
Repeatability 8% (< 250 HV); 6% (≥ 250 HV)
Indenter Vickers diamond indenter
Measuring Direction 360°
Hardness Scales HV, HB, HRC, HRB
Operating Temperature −10°C to 50°C
Operating Humidity 30–80% RH
Dimensions 170 x 75 x 40mm
Weight 500g
Main unit Included
10N manual probe Included
Standard test block Included
V-shape base Included
Probe cable Included
Charger Included
TIME certificate Included
Warranty card Included
Instruction manual Included
20N manual probe Available separately
50N manual probe Available separately
TIMEA531 operation stand Available separately
