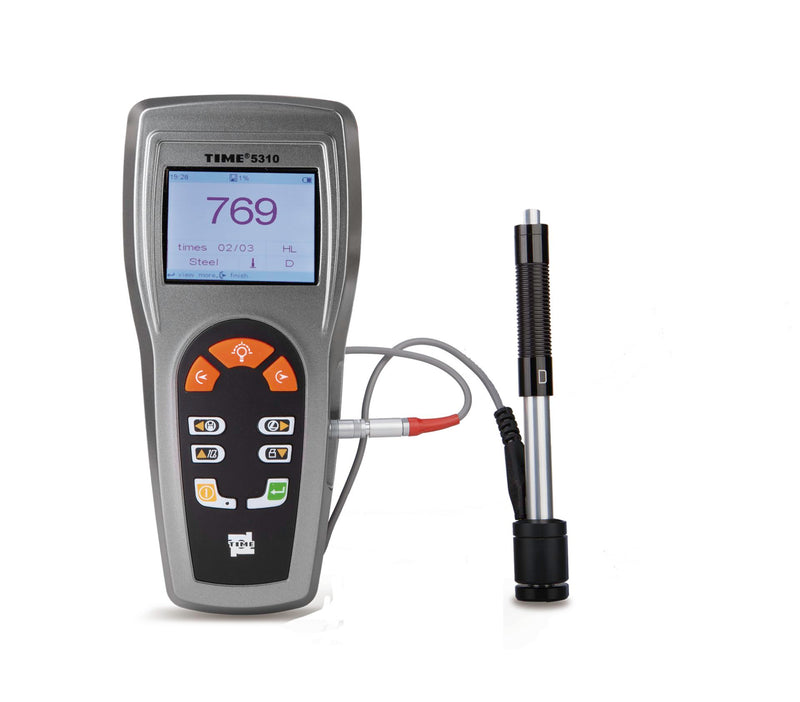

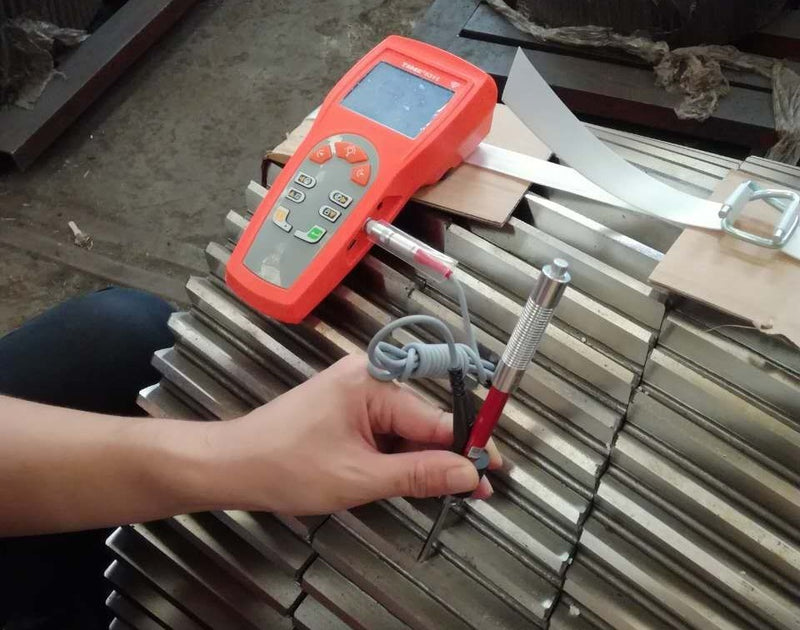

TIME5310 Digital Leeb Hardness Tester with Colour Display
TIME5310 Digital Leeb Hardness Tester with Colour Display
TIME5310 Digital Leeb Hardness Tester with Colour Display
TIME5310 Digital Leeb Hardness Tester with Colour Display

TIME5310 Digital Leeb Hardness Tester with Colour Display

SKU TIME5310
$0.00 - $0.00
$0.00
$0.00 - $0.00
$0.00
Secure Payment
24/7 Customer Support
30-Day Returns
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • Shop Pay
  • Union Pay
  • Visa
Request A Quote (For Bulk Orders)
Returns & Warranty

Warranty
All products are covered by the manufacturer's warranty. Warranty terms vary by manufacturer and product.

Returns
Items can be returned within 7 days of receipt. Returned items must be unopened, unused and in their original packaging, with all accessories and documentation included.

Warranty claims and enquiries
For warranty claims, returns or product-specific enquiries, contact us at support@testingcore.com.

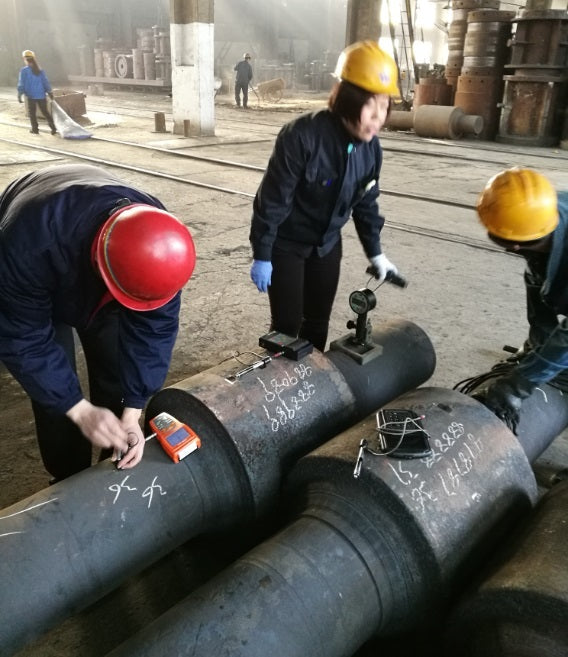

The TIME5310 is a digital Leeb hardness tester developed with advanced microelectronic technology. It offers a full set of features for metal hardness testing, including probe auto-recognition, large memory, USB output, an optional removable printer and software. Its improved display makes values much easier to read, and it is suitable for testing in the field or in the lab.

Newly designed probes are also now available for the TIME5310.

New Probes for TIME5310 Digital Hardness Tester

New Probes for TIME5310 Digital Hardness Tester
  • Advanced microelectronic technology for a wide range of metal hardness tests
  • Simple menu, easy and convenient to use
  • Conversion between common hardness scales (HL, HV, HB, HRC, HRB, HRA and HS), plus conversion to tensile strength
  • 7 optional impact device types with auto-recognition; the universal standard D-type impact device is included
  • 2.8-inch TFT LCD colour screen (240 x 320 dot matrix, 262K colours) with adjustable backlight, showing all key values and information
  • Memory of 1,000 groups of data
  • Upper and lower limit settings with audible alarm
  • Transfer to PC via USB in Word and Excel formats, with PC software included
  • Charge indicator and rechargeable lithium battery with no memory effect
  • Optional removable printer, so test values can be printed directly
  • Built-in conversion table; HB values can be read directly when a D or DC impact device is fitted
Measuring Range 170–960 HLD
Tolerance ±6 HLD (at 790 ±40 HLD)
Repeatability 6 HLD (at 790 ±40 HLD)
Measuring Direction 360°
Hardness Scales HL, HB, HRA, HRB, HRC, HV, HS
Display 2.8-inch TFT LCD, 240 x 320 dot matrix, 262K colours
Data Storage 1,000 groups of data
Upper/Lower Limit Setting 170–960 HLD
Working Voltage 3.7V
Charging Time 6 hours
Power 12V / 500mA
Continuous Working Time 20 hours
Interface USB 2.0
Main unit 1
Impact device type D 1
Test block HLD 1
Small support ring 1
Charger 1
Cleaning brush 1
Thermal printer paper 1
TIME certificate 1
Warranty card 1
Hardness tester manual 1
Impact devices: DC, D+15, C, G, DL Available separately
Support rings Available separately
Dataview Available separately
