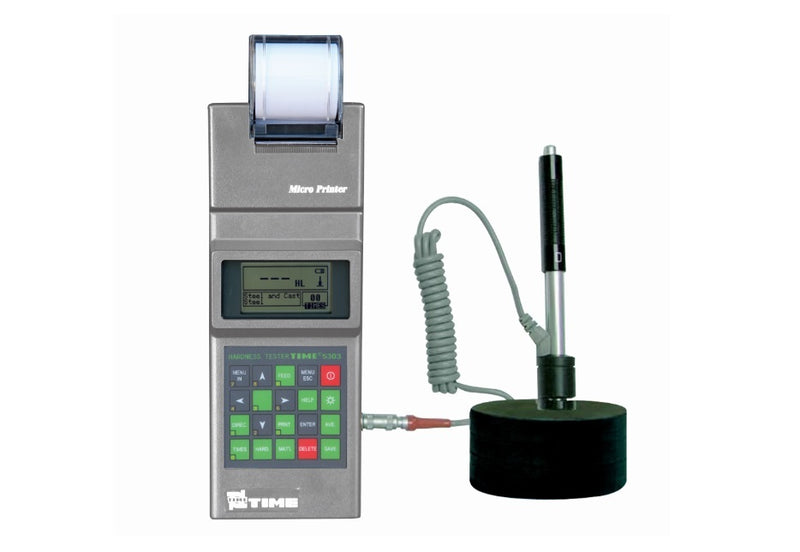

The TIME5303 Leeb Hardness Tester is specially designed for mill roll hardness measurement. It has two testing systems: one for mill roll hardness measurement and the other for standard hardness testing.
  • Additional roller hardness testing system
  • Simple menu, easy and convenient to use
  • Conversion between common hardness scales (HL, HV, HB, HRC, HRB, HRA and HS)
  • 7 optional impact device types with auto-recognition; the standard D-type impact device is included
  • Backlit matrix LCD display for convenient use in the dark
  • Memory of 48–350 groups of data
  • Upper and lower limit presets with audible alarm
  • RS232 connector supports additional needs such as data storage and further analysis
  • Software calibration
  • Removable printer included, so test values can be printed directly
Measuring Range 30–110 HSD HLD
Hardness Scales HL, HB, HRA, HRB, HRC, HV, HS
Measuring Direction 360°
Tolerance ±6 HLD
Repeatability 6 HLD
Power 12V / 600mA
Charging Time 2 hours (with overcharge protection)
Operating Temperature 0°C to 40°C
Dimensions 270 x 86 x 47mm
Weight 530g (including main unit and printer)
Interface RS232
Standards Compliance JB/T 9378-2001, Q/HD SDF006-2003
Main unit 1
Impact device type D 1
Test block HLD 1
Charger 1
Cleaning brush 1
Table support for main unit 1
Connecting cable 1
Printing paper 1
TIME certificate 1
Warranty card 1
Instruction manual 1
Special impact devices Available separately
Support rings Available separately
