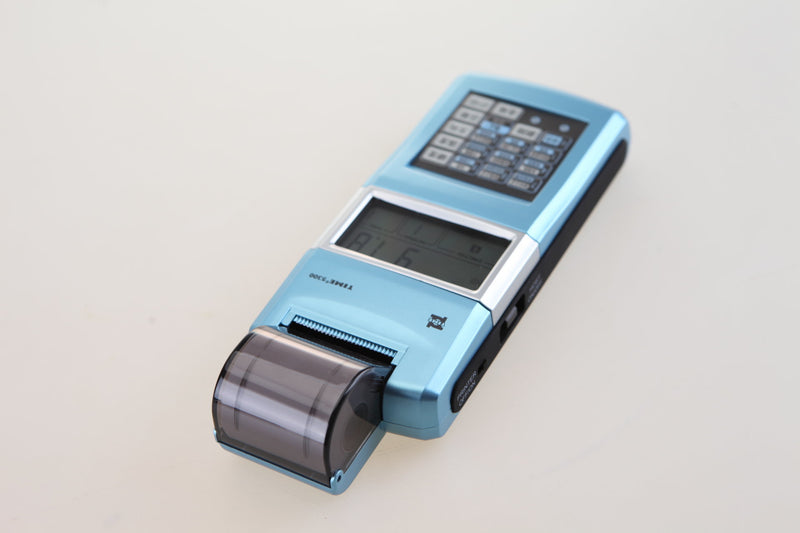

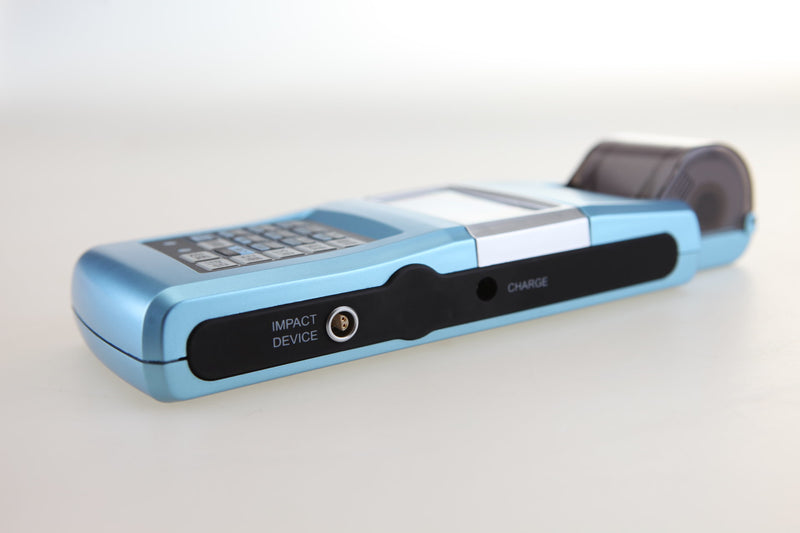

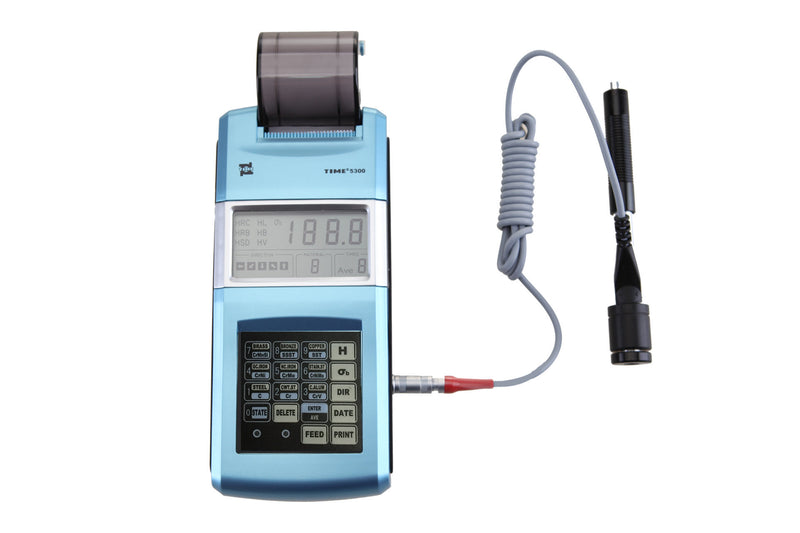

TIME5300 (TH110) Portable Leeb Hardness Tester with Printer
TIME5300 (TH110) Portable Leeb Hardness Tester with Printer
TIME5300 (TH110) Portable Leeb Hardness Tester with Printer
TIME5300 (TH110) Portable Leeb Hardness Tester with Printer
TIME5300 (TH110) Portable Leeb Hardness Tester with Printer

TIME5300 (TH110) Portable Leeb Hardness Tester with Printer

SKU
$0.00 - $0.00
$0.00
$0.00 - $0.00
$0.00
Secure Payment
24/7 Customer Support
30-Day Returns
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • Shop Pay
  • Union Pay
  • Visa
Request A Quote (For Bulk Orders)
Returns & Warranty

Warranty
All products are covered by the manufacturer's warranty. Warranty terms vary by manufacturer and product.

Returns
Items can be returned within 7 days of receipt. Returned items must be unopened, unused and in their original packaging, with all accessories and documentation included.

Warranty claims and enquiries
For warranty claims, returns or product-specific enquiries, contact us at support@testingcore.com.

The TIME5300 (TH110) is a basic, economical portable hardness tester that offers high accuracy and simple operation across a wide measuring range. It is suitable for testing the hardness of all metallic materials and is widely used in industries such as petroleum, chemical, machinery and electric power, among others.
  • Simple menu, easy and convenient to use
  • Conversion between common hardness scales (HL, HV, HB, HRC, HRB and HS), plus tensile strength conversion
  • Display shows all key values and information, including readings, mean value (MEAN), number of measurements (NO.), date, impact direction, material tested and hardness values
  • 7 optional impact device types with auto-recognition; the universal standard D-type is included
  • High accuracy and a wide range of testable materials: steel and cast steel, forged steel, cold work tool steel, stainless steel, grey cast iron, nodular cast iron, cast aluminium alloys, brass (copper-zinc alloys), bronze (copper-aluminium/copper-tin alloys) and wrought copper alloys
  • Measures in any direction (360°), even with the probe pointing upwards
  • Battery charge indicator, and the rechargeable battery is easy to replace
  • Printer included, so test values can be printed directly
  • Software calibration
  • Auto power-off
Measuring Range 170–960 HLD (17.9–69.5 HRC), depending on probe
Hardness Scales HL, HB, HRB, HRC, HV, HS
Measuring Direction 360°
Tolerance ±6 HLD (at HLD = 760 ±30), depending on probe
Repeatability 6 HLD (at HLD = 760 ±30)
Printer Paper Diameter 40mm
Printer Paper Width 44.5 ±0.5mm
Power 12V / 600mA
Charging Time 2–3.5 hours
Humidity ≤ 90%
Operating Temperature 0°C to 40°C
Dimensions 235 x 90 x 47mm
Weight 615g
Main unit 1
Impact device type D 1
Test block HLD 1
Small support ring 1
Cleaning brush 1
Charger 1
Printing paper 1
TIME certificate 1
Warranty card 1
Instruction manual 1
Special impact devices Available separately
Support rings Available separately
