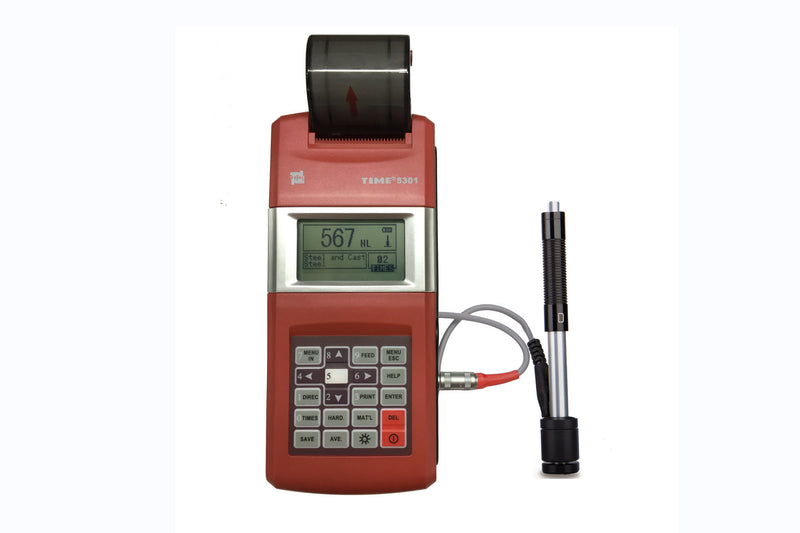

TIME5301 Dynamic Rebound Leeb Hardness Tester with Printer

TIME5301 Dynamic Rebound Leeb Hardness Tester with Printer

SKU TIME5301
$0.00 - $0.00
$0.00
$0.00 - $0.00
$0.00
Secure Payment
24/7 Customer Support
30-Day Returns
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • Shop Pay
  • Union Pay
  • Visa
Request A Quote (For Bulk Orders)
Returns & Warranty

Warranty
All products are covered by the manufacturer's warranty. Warranty terms vary by manufacturer and product.

Returns
Items can be returned within 7 days of receipt. Returned items must be unopened, unused and in their original packaging, with all accessories and documentation included.

Warranty claims and enquiries
For warranty claims, returns or product-specific enquiries, contact us at support@testingcore.com.

The TIME5301 Dynamic Rebound Hardness Tester uses the Leeb dynamic rebound method and is well suited to hardness testing on large, hard metal parts. It can store 48–350 groups of data, and its RS232 connector supports additional needs such as data storage and analysis.
  • Simple menu, easy and convenient to use
  • Conversion between common hardness scales (HL, HV, HB, HRC, HRB, HRA and HS), plus conversion to tensile strength
  • 7 optional impact device types with auto-recognition; the standard D-type impact device is included
  • Backlit matrix LCD display showing all key values and information
  • Memory of 48–350 groups of data
  • Upper and lower limit presets with audible alarm
  • RS232 connector supports additional needs such as data storage and further analysis
  • Battery charge indicator, and the rechargeable battery is easy to replace
  • Printer included, so test values can be printed directly
Measuring Range 170–960 HLD (17.9–69.5 HRC)
Hardness Scales HL, HB, HRA, HRB, HRC, HV, HS
Measuring Direction 360°
Tolerance ±6 HLD (at HLD = 760 ±30)
Repeatability 6 HLD (at HLD = 760 ±30)
Printer Paper Diameter 40mm
Printer Paper Width 44.5 ±0.5mm
Power 12V / 600mA
Charging Time 2–3.5 hours
Humidity ≤ 90%
Operating Temperature 0°C to 40°C
Dimensions 234 x 88 x 46mm
Weight 600g
Main unit 1
Impact device type D 1
Test block HLD 1
Small support ring 1
Cleaning brush 1
Charger 1
Printing paper 1
TIME certificate 1
Warranty card 1
Instruction manual 1
Special impact devices Available separately
Support rings Available separately
