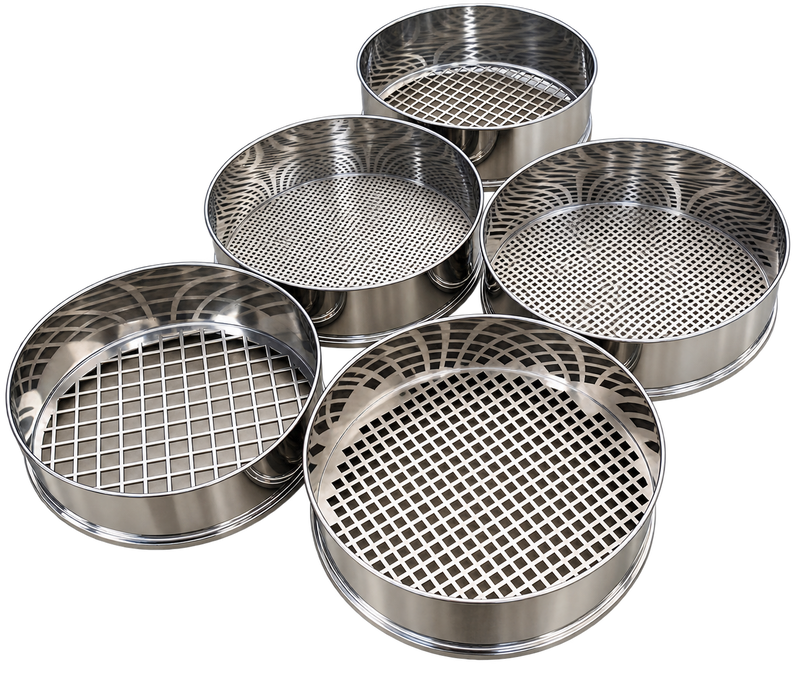

8 Inch Woven Wire Test Sieve (203mm) – Stainless Steel, ASTM E11
8 Inch Woven Wire Test Sieve (203mm) – Stainless Steel, ASTM E11

8 Inch Woven Wire Test Sieve (203mm) – Stainless Steel, ASTM E11

SKU TS-203
$0.00 - $0.00
$0.00
$0.00 - $0.00
$0.00
Secure Payment
24/7 Customer Support
30-Day Returns
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • Shop Pay
  • Union Pay
  • Visa
Request A Quote (For Bulk Orders)
Returns & Warranty

Warranty
All products are covered by the manufacturer's warranty. Warranty terms vary by manufacturer and product.

Returns
Items can be returned within 7 days of receipt. Returned items must be unopened, unused and in their original packaging, with all accessories and documentation included.

Warranty claims and enquiries
For warranty claims, returns or product-specific enquiries, contact us at support@testingcore.com.

8 Inch (203mm) Stainless Steel Woven Wire Test Sieves

8 inch woven wire test sieves for particle size analysis, made to the US standard ASTM E11. Each sieve has a stainless steel woven wire screen with square apertures from No. 635 (20 µm) to 1.06 in (26.5 mm), mounted in a seamless 203mm AISI 304 stainless steel frame, 2 in deep. These sieves are built for laboratories that specify ASTM methods and order by sieve number.

Every sieve is supplied with a certificate of compliance and a unique, traceable serial number.

Request a Quote

Include the sieve numbers you need and the quantity of each in your quote request.

Frequently Asked Questions

What is an 8 inch test sieve?
A test sieve with a 203mm (8 in) diameter frame, made to the US standard ASTM E11.

Do 8 inch test sieves come with a certificate?
Yes. Each sieve is supplied with a certificate of compliance and a unique, traceable serial number.

Will these sieves stack with other 8 inch sieves and pans?
Yes. The skirted outside frame nests with sieves, bottom pans and nesting pans of the same 203mm diameter.

Can I get a sieve number that isn’t listed?
Yes. Apertures larger than 1.06 in (26.5 mm) are made to order, and other sizes can be quoted on request.
  • Seamless double frame: an inside and an outside frame, each drawn from a single piece of AISI 304 stainless steel with no seam
  • Rolled top edge: smooth, rounded rim for safe, comfortable handling
  • Sample-retaining hoop: the bottom of the inside frame forms a hoop that stops sample material escaping between the screen and the frame
  • Nesting skirt: the outside frame extends into a skirt that fits other 8 inch sieves, bottom pans and nesting pans for stable stacking
  • Tensioned screen: woven wire screens are evenly tensioned; fine meshes are clamped between the two frames rather than soldered
  • Crevice-free: no gaps or crevices to trap sample material
Frame diameter 203mm (8 in)
Sieve depth 50mm (2 in)
Frame material AISI 304 stainless steel, seamless double frame
Screen Stainless steel woven wire, square apertures
Weave Plain or twilled
Aperture range No. 635 (20 µm) – 1.06 in (26.5 mm)
Standards ASTM E11-22, ISO 3310-1
Certification Certificate of compliance, unique serial number
Packing Bubble wrap, plywood case
Fine No. 635 (20 µm), No. 500 (25 µm), No. 450 (32 µm), No. 400 (38 µm), No. 325 (45 µm), No. 270 (53 µm), No. 230 (63 µm), No. 200 (75 µm), No. 170 (90 µm), No. 140 (106 µm), No. 120 (125 µm), No. 100 (150 µm), No. 80 (180 µm), No. 70 (212 µm), No. 60 (250 µm), No. 50 (300 µm), No. 45 (355 µm), No. 40 (425 µm), No. 35 (500 µm), No. 30 (600 µm), No. 25 (710 µm), No. 20 (850 µm)
Coarse No. 18 (1.00 mm), No. 16 (1.18 mm), No. 14 (1.40 mm), No. 12 (1.70 mm), No. 10 (2.00 mm), No. 8 (2.36 mm), No. 7 (2.80 mm), No. 6 (3.35 mm), No. 5 (4.00 mm), No. 4 (4.75 mm), 1/4 in (6.3 mm), 0.265 in (6.7 mm), 5/16 in (8.0 mm), 3/8 in (9.5 mm), 7/16 in (11.2 mm), 1/2 in (12.5 mm), 0.530 in (13.2 mm), 5/8 in (16.0 mm), 3/4 in (19.0 mm), 7/8 in (22.4 mm), 1.00 in (25.0 mm), 1.06 in (26.5 mm)
Apertures larger than 1.06 in (26.5 mm) are made to order.
Soil, silt, sand and gravel classification for civil engineering
Cement testing
Grading coal and ores
Checking crusher, grinder and industrial screen performance
Sizing chemical and pharmaceutical powders and crystals
Half-height frames
Brass frames
Perforated plate screens with square or round holes (see Perforated Plate Test Sieves)
