450mm Stainless Steel Test Sieves

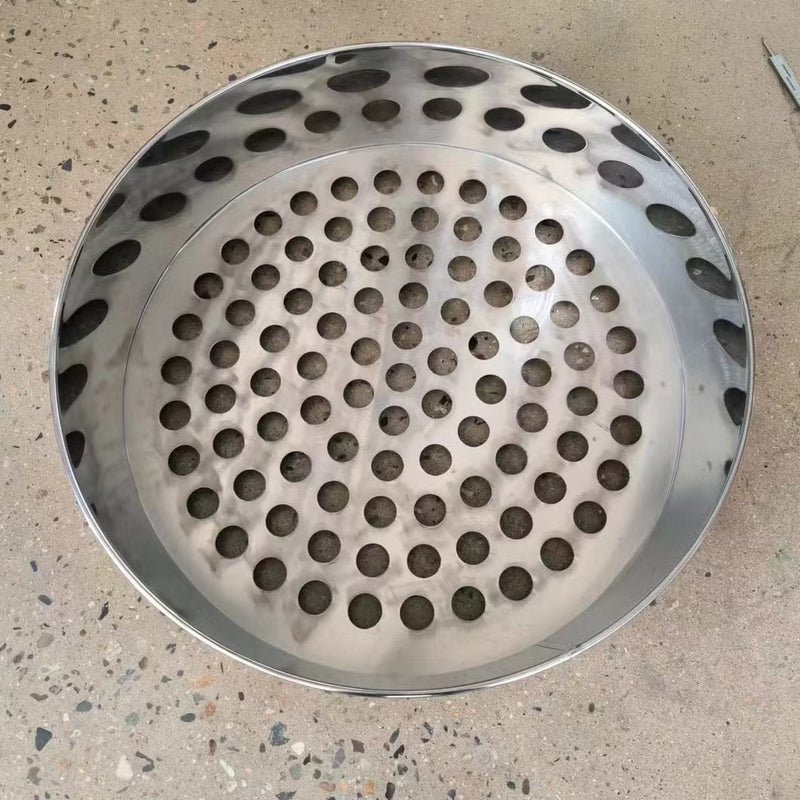

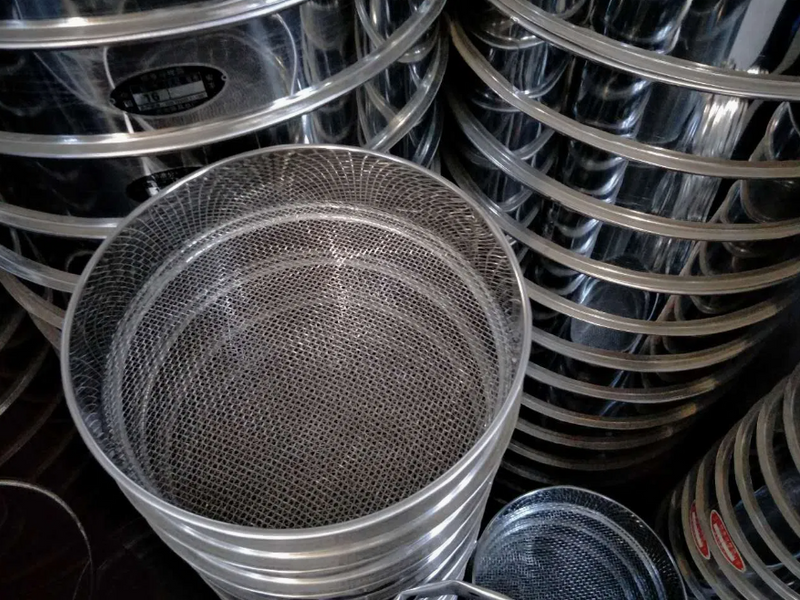

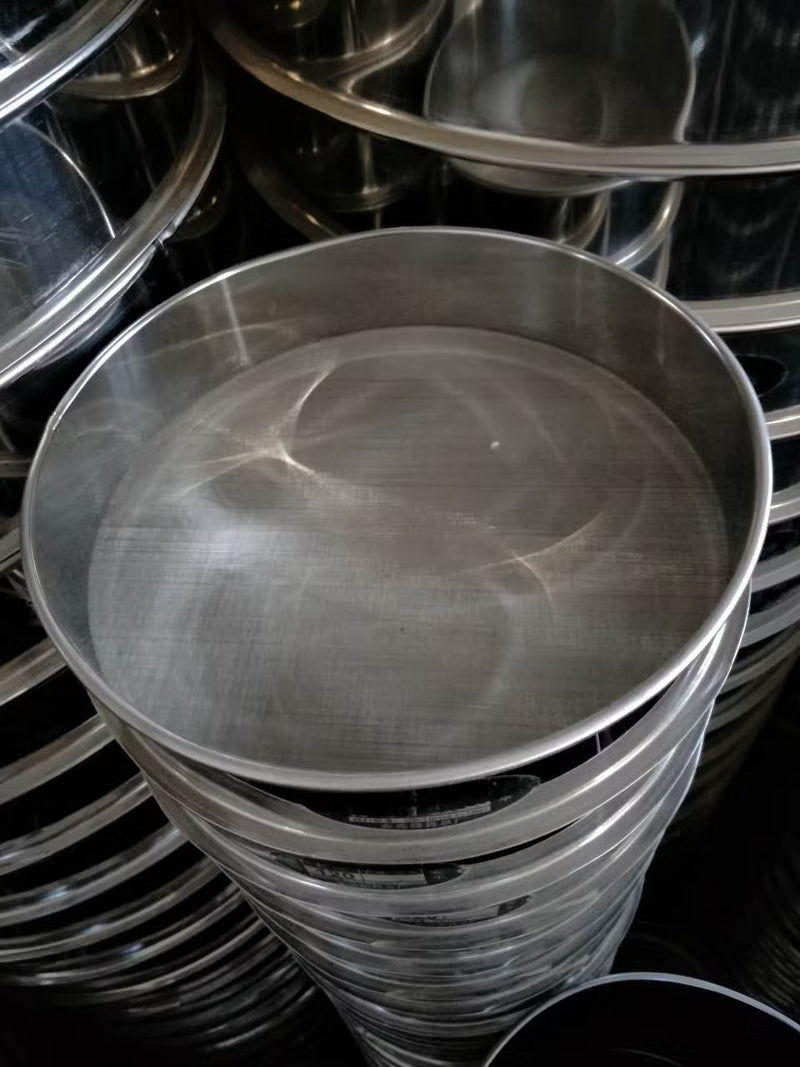

450mm test sieves for particle size analysis of larger sample quantities, including aggregate, gravel, minerals and ores. Each sieve has a heavy-duty welded stainless steel frame, 80mm deep, fitted with either a perforated plate screen made to ISO 3310-2 and ASTM E323, or a woven wire screen made to ISO 3310-1.

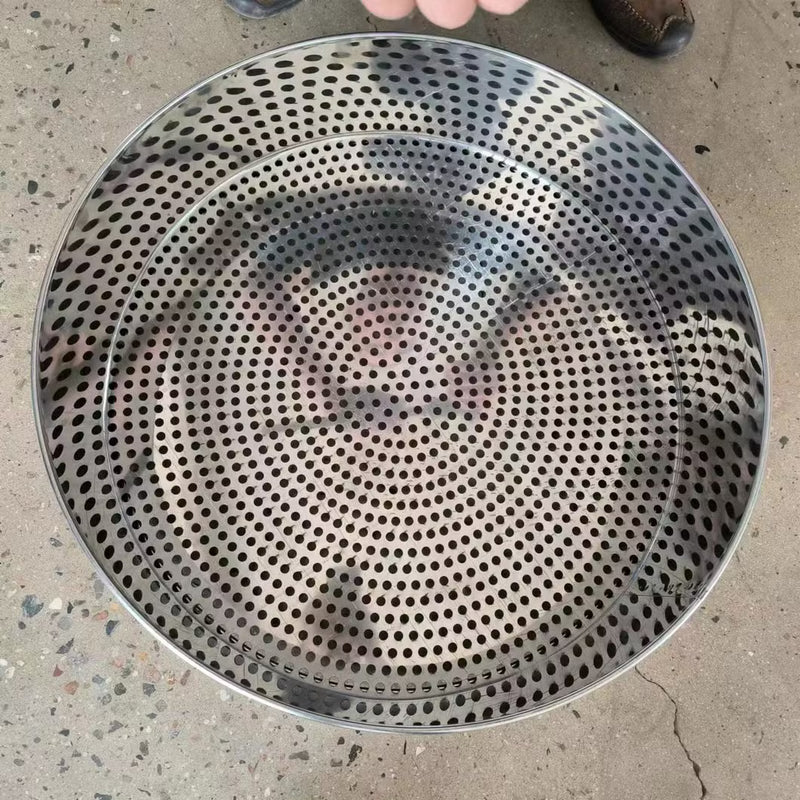

Perforated plate screens are available with square or round holes from 1 mm to 125 mm. Woven wire screens are available from 20 µm to 26.5 mm.

Every sieve is supplied with a certificate of compliance and a unique, traceable serial number.

Request a Quote

Include the screen type (perforated plate or woven wire), the hole shape (square or round), the apertures you need and the quantity of each.

Frequently Asked Questions

When is a 450mm test sieve used?
200mm is the standard laboratory size. Larger frames such as 450mm are used when there is a larger quantity of material to sieve.

Are square and round holes both available?
Yes. Perforated plate screens are available with square holes from 3.35 mm or round holes from 1 mm, up to 125 mm. Let us know which your test method specifies.

Are lids and receivers available?
Yes. A matching 450mm lid and a full-height 100mm receiver are available.

Do 450mm test sieves come with a certificate?
Yes. Each sieve is supplied with a certificate of compliance and a unique, traceable serial number.

Will these sieves stack together?
Yes. The skirt fits sieves, bottom pans and nesting pans of the same 450mm diameter.

Welded single frame: a stainless steel frame on top and a stainless steel skirt below, joined by welding
Clamped screen: the screen is stretched and fixed tightly between the frame and the skirt
Nesting skirt: the skirt fits other 450mm sieves, bottom pans and nesting pans for stable stacking
Laser-cut holes: perforated plate holes are laser cut for accuracy
Crevice-free: no gaps or crevices to trap sample material
Smooth edges: rolled edges and a sturdy rim for safe handling

Specifications Available Apertures Applications Also Available

Frame diameter 450mm

Sieve depth 80mm

Frame Stainless steel, welded single frame

Frame material Stainless steel (AISI 304 or 316)

Screen options Perforated plate or woven wire

Perforated plate thickness 1.2mm (apertures up to 13.2 mm), 2.0mm (16 mm and above)

Other plate thicknesses 0.8 – 4mm on request

Hole arrangement 60° staggered; also straight-line (square) or circular (round)

Perforated plate standards ISO 3310-2, ASTM E323

Woven wire standard ISO 3310-1

Woven wire weave Plain or twilled

Certification Certificate of compliance, unique serial number

Packing Bubble wrap, plywood case

Perforated plate: square holes (mm) 3.35 (ASTM E323 only), 4.00, 4.75, 5.6, 6.3, 6.7, 8.0, 10, 11.2, 12.5, 13.2, 16.0, 19.0, 22.4, 25.0, 26.5, 31.5, 32, 37.5, 45, 50, 53, 63, 75, 90, 100, 106, 125

Perforated plate: round holes (mm) 1.00, 1.18, 1.40, 1.70, 2.00, 2.36, 2.80, 3.35, 4.00, 4.75, 5.6, 6.3, 6.7, 8.0, 10, 11.2, 12.5, 13.2, 16.0, 19.0, 22.4, 25.0, 26.5, 32, 37.5, 45, 50, 53, 63, 75, 90, 100, 106, 125

Perforated plate: also available 9.5 mm

Woven wire 20 µm (No. 635) to 26.5 mm (1.06 in), in the standard ISO and ASTM sizes listed on our 200mm and 300mm Woven Wire Test Sieve pages. Larger woven wire apertures are made to order.

Grading soils, aggregate, minerals and cement

Quarry and mining samples, including gravel, sand and coal

Grading coke and foundry sand

Checking crusher, grinder and industrial screen performance

Matching 450mm stainless steel lid

Matching 450mm full-height receiver, 100mm deep

Half-height frames

Brass frames
