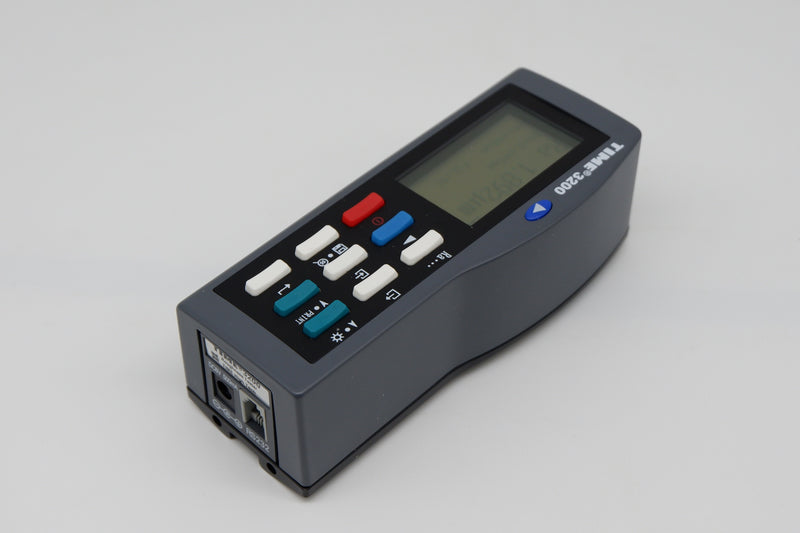

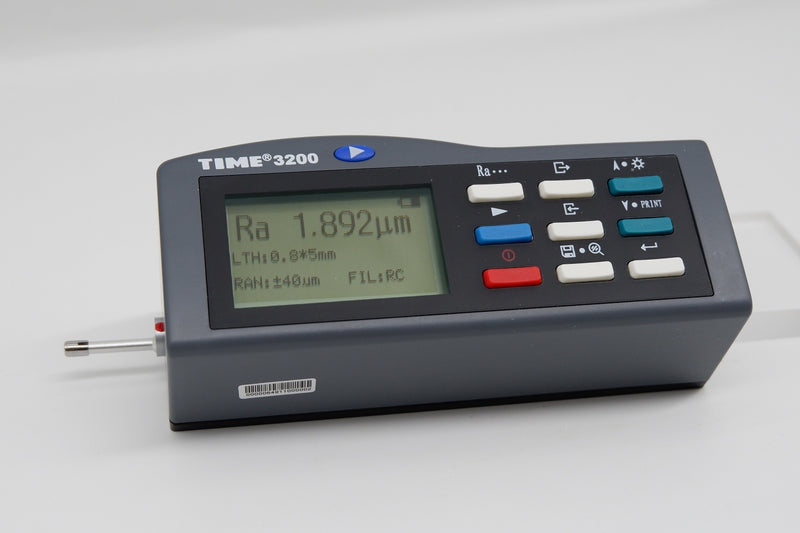

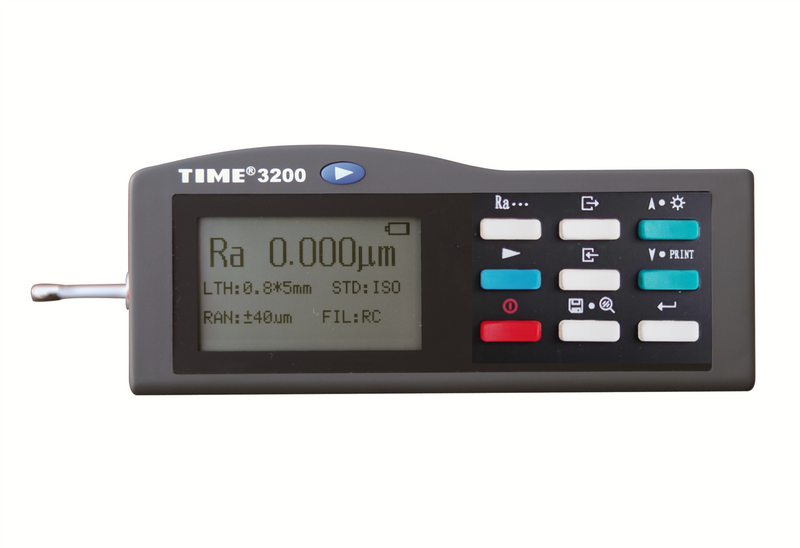

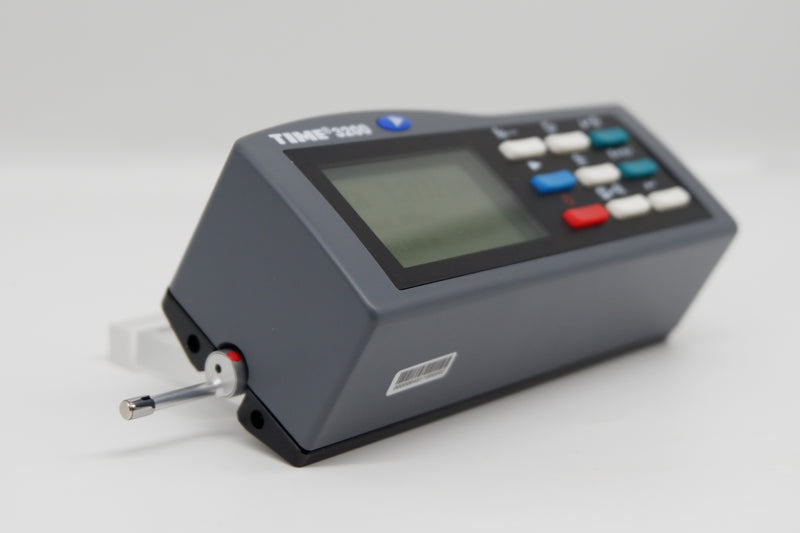

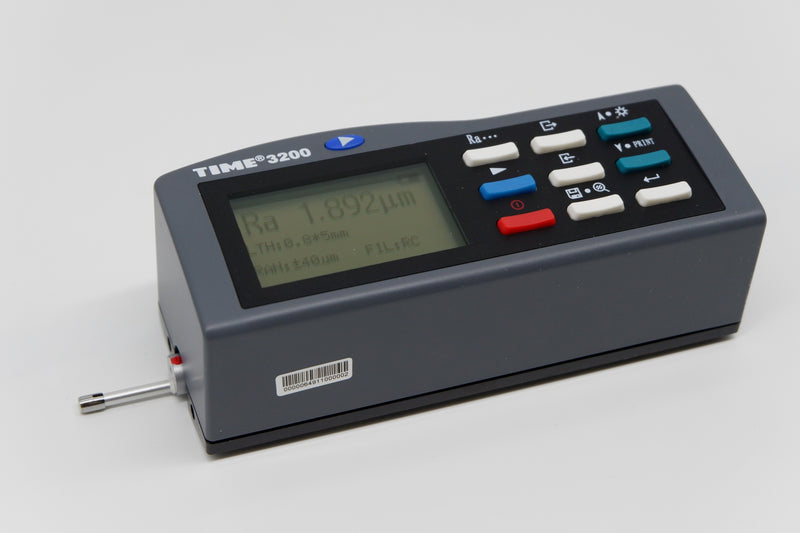

The TIME3200/3202 (TR200) is a surface roughness tester that supports dozens of parameters. It is small and light, can be fitted with several optional pickups for different applications, and is well suited to on-site roughness testing.

TIMESurf software for the TIME3200/3202

TIMESurf software for the TIME3200/3202

System diagram

TIME3200/3202 system diagram
  • Over a dozen measurement parameters, suitable for roughness testing across a range of mechanical manufacturing processes on production lines and in workshops and labs
  • High-accuracy inductive pickup
  • Easy operation and a large backlit LCD display
  • Pickup stylus position indicator

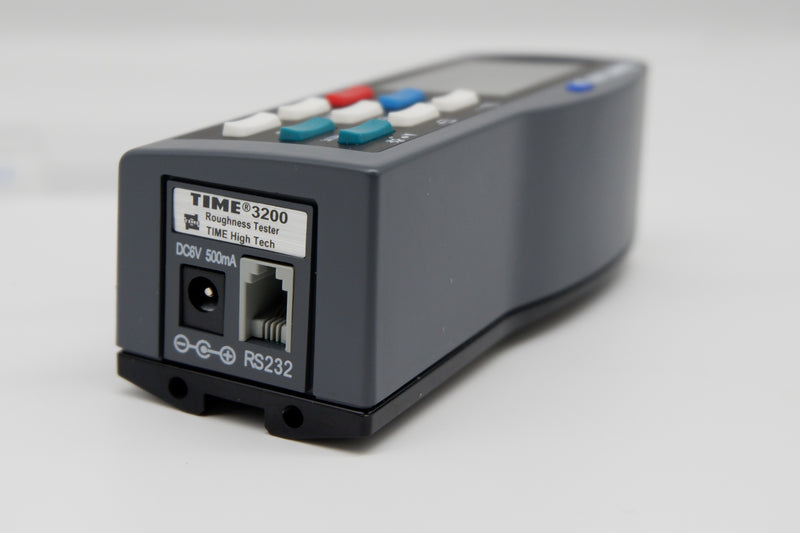

  • Transfer to PC via RS232, with PC software (TIMESurf) for further analysis
  • Connects to a printer to print data and graphs on site
  • Stores and reviews up to 15 groups of data and graphs
  • Rk data and graphics available
  • Digital filters: RC, PC-RC, Gauss, D-P
  • Accessories for more accurate results and easier operation, such as a measuring platform (optional) and steel support (included)
  • Conforms to ISO standards and is compatible with DIN, ANSI and JIS standards
  • Rechargeable lithium-ion battery
Roughness Parameters (TIME3200) Ra, Rz, Ry, Rq, Rt, Rp, Rmax, Rv, R3z, RS, RSm, RSk, Rmr
Roughness Parameters (TIME3202) Ra, Rz, Ry, Rq, Rt, Rp, Rmax, Rv, R3z, RS, RSm, RSk, Rmr, Rpc, Rk, Rpk, Rvk, Mr1, Mr2
Assessed Profiles Roughness profile (R), primary profile (P)
Measuring System Metric, imperial
Display Resolution 0.001 µm
Data Output RS232
Pickup Measuring Range ±20 µm, ±40 µm, ±80 µm
Cut-off Length (L) 0.25mm / 0.8mm / 2.5mm / Auto
Evaluation Length 1–5L (selectable)
Tracing Length 3–7L (selectable)
Max. Tracing Length 17.5mm (0.71 in)
Min. Tracing Length 1.3mm (0.052 in)
Digital Filters RC, PC-RC, Gauss, D-P

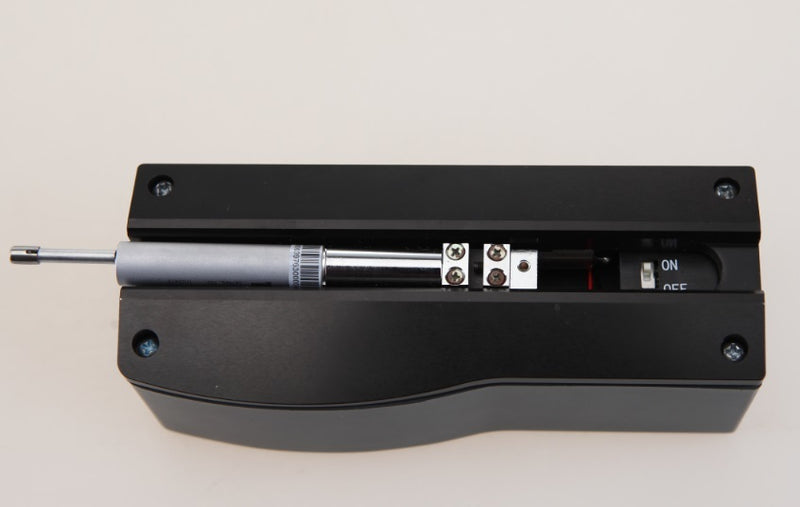

Pickup Standard TS100 inductive pickup; diamond stylus, 5 µm radius, 90° stylus angle
Accuracy ≤ ±10%
Repeatability ≤ 6%
Power Rechargeable lithium-ion battery
Dimensions 140 x 52 x 48mm
Weight 440g
Standards Compliance ISO; compatible with DIN, ANSI and JIS
Main unit 1
TS100 standard pickup 1. With skid, for plane surfaces, shafts and the inner surfaces of holes (max. depth 22mm, min. diameter 5mm)
Roughness test plate Ra 1
Charger 1
Protection nose 1
Steel support 1
Dataview 1
Communication cable 1
TIME certificate 1
Warranty card 1
Instruction manual 1
TS110 pickup for curved surfaces For curved surfaces with a min. curvature radius of 3mm; works with the TA620 measuring platform
TS120 pickup for small holes For small holes with a min. inner diameter of 2mm and max. depth of 9mm
TS130 pickup for deep grooves For deep grooves with min. width 2mm and max. depth 3mm, or steps with max. height 3mm
TS131 pickup for deep grooves For deep grooves with min. width 3mm and max. depth 10mm, or steps with max. height 10mm; works with the TA620 measuring platform
TS140 right-angled pickup Right-angled pickup and transmit rod, for grooves and cranks with min. width 7.5–20mm, and steps with max. height 2.5mm; works with the TA620
Measuring platform TA620 For high-accuracy operation
Levelling table TA630/TA631 Available separately
Magnetic stand Available separately
Steel adapter (Ø8) Available separately
Steel adapter (L-attachment) For connecting to the measuring platform
Printer TA230 Available separately
