TIME3110 (TR110) Handheld Surface Roughness Tester Ra/Rz
TIME3110 (TR110) Handheld Surface Roughness Tester Ra/Rz
TIME3110 (TR110) Handheld Surface Roughness Tester Ra/Rz
TIME3110 (TR110) Handheld Surface Roughness Tester Ra/Rz
TIME3110 (TR110) Handheld Surface Roughness Tester Ra/Rz
TIME3110 (TR110) Handheld Surface Roughness Tester Ra/Rz

TIME3110 (TR110) Handheld Surface Roughness Tester Ra/Rz

SKU TIME3110
$0.00 - $0.00
$0.00
$0.00 - $0.00
$0.00
Secure Payment
24/7 Customer Support
30-Day Returns
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • Shop Pay
  • Union Pay
  • Visa
Request A Quote (For Bulk Orders)
Returns & Warranty

Warranty
All products are covered by the manufacturer's warranty. Warranty terms vary by manufacturer and product.

Returns
Items can be returned within 7 days of receipt. Returned items must be unopened, unused and in their original packaging, with all accessories and documentation included.

Warranty claims and enquiries
For warranty claims, returns or product-specific enquiries, contact us at support@testingcore.com.

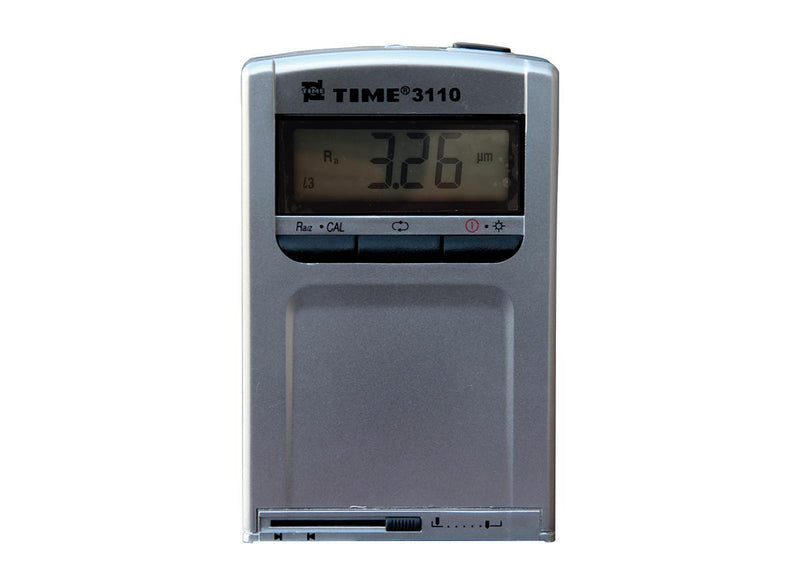

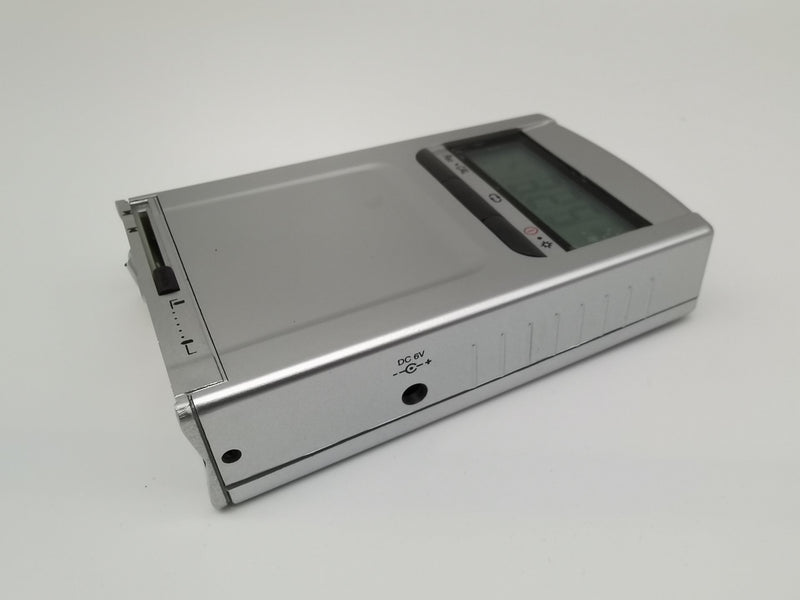

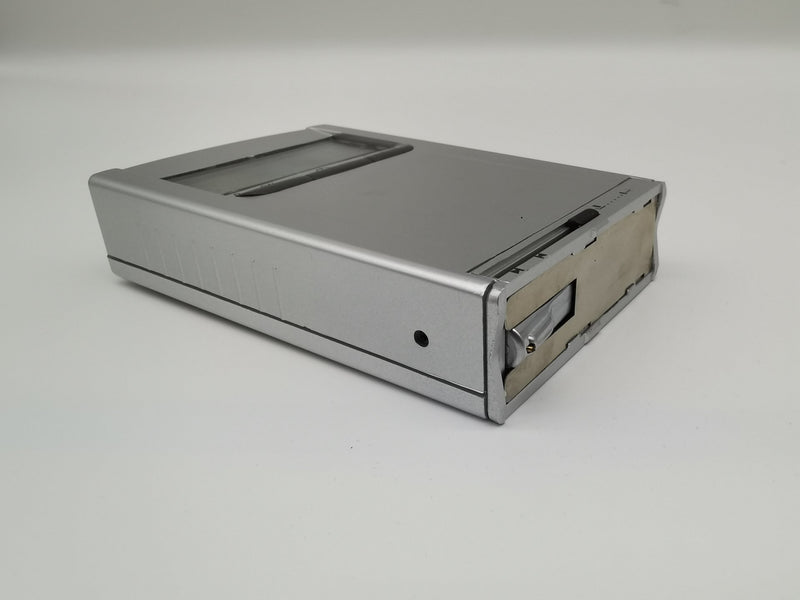

The TIME3110 (TR110) is a handheld surface roughness tester for Ra and Rz measurement, well suited to a wide range of mechanical manufacturing processes.
  • Pocket-size unit, widely used on production lines and in workshops and labs
  • Wide measuring range suitable for most materials, and for flat, outer cylindrical and sloping surfaces
  • Rugged design with a long service life, while maintaining accurate and reliable results
  • Measures both Ra and Rz
  • All calculated results shown on the backlit LCD display
  • Indicators and alarms for low battery, out-of-limit values and malfunctions
  • Rechargeable lithium battery and improved circuitry
  • Improved sensor protection for high accuracy and good stability
Roughness Parameters Ra, Rz
Tracing Length 6mm
Tracing Speed 1.0mm/sec
Cut-off Lengths 0.25, 0.8, 2.5mm
Evaluation Lengths 1.25, 4.0, 5.0mm
Measuring Range Ra: 0.05–6.5 µm; Rz: 0.1–50 µm
Accuracy ±15%
Repeatability < 12%
Filter RC analogue
Pick-up Piezoelectric
Stylus Tip Diamond; radius 10 ±2.5 µm; angle 90° (+5° / −10°)
Operating Temperature 0°C to 40°C
Humidity < 80%
Storage Temperature −25°C to 60°C
Power 3.6V lithium-ion battery
Charger DC 6V; 3-hour charging time
Dimensions 110 x 70 x 24mm
Weight 160g
Standards Compliance ISO, DIN

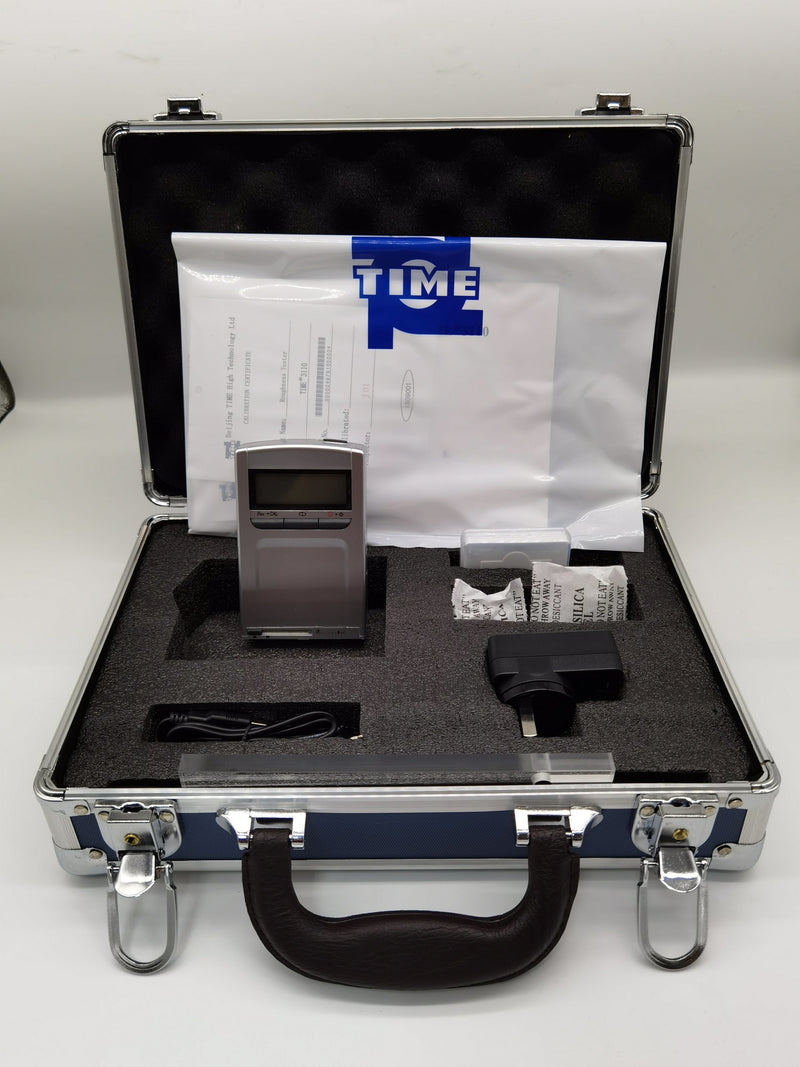

Main unit 1
Ra specimen 1
Charger 1
TIME certificate 1
Warranty card 1
Instruction manual 1
Ra specimens (Ra values: 0.1, 0.2, 0.4, 0.8, 3.2 µm) Available separately
