TIMES247 Replaceable Pickup for the TIME3231/TIME3234 Roughness Tester

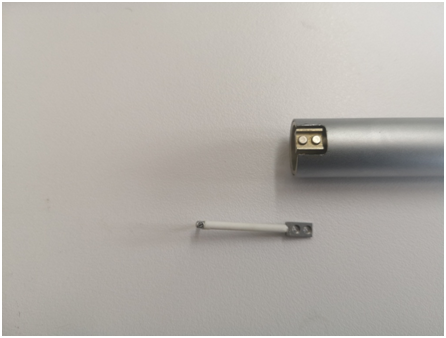

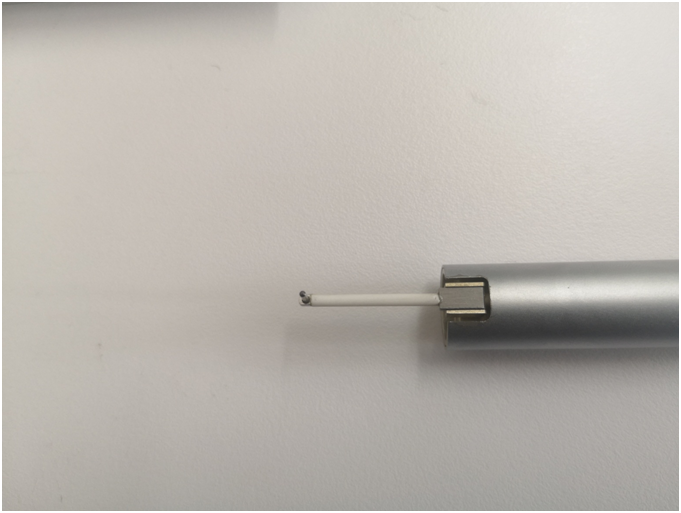

TIMES247 replaceable pickup is a roughness sensor with the stylus that can be detached separately. The stylus and the sensor body are connected by magnetic attraction. When encountering unexpected situations such as impact, the stylus will fall off by itself, which avoids damage and improves the reliability of the sensor. At the same time, the split structure is adopted, and different types of stylus can be selected to install on the sensor body according to the shape and size of the workpiece to be tested, which improves the versatility of the sensor. The sensor adopts a skidless design and can work with TIME3231/TIME3233/TIME3234 roughness measuring instruments.

Standard stylus: 5mm (equal to TIMES230/TIMES241/TIMES244)

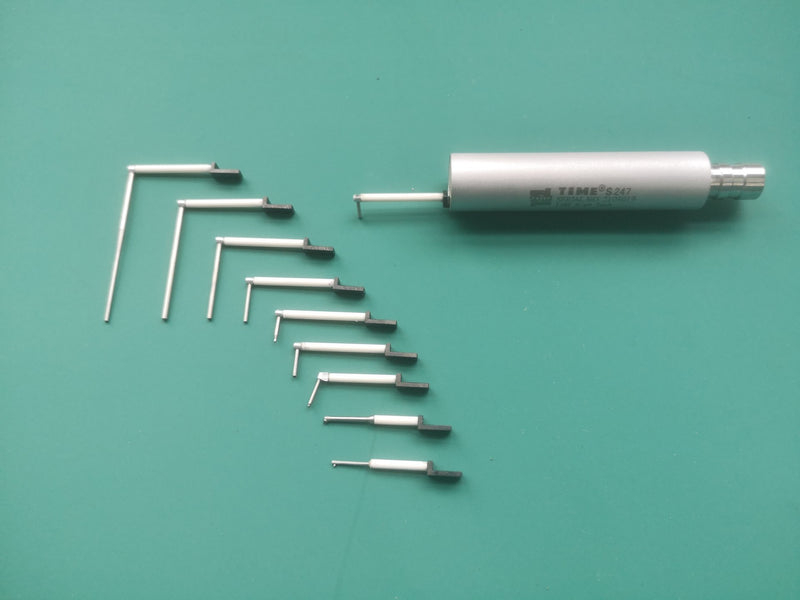

Optional stylus:

1. 40mm (equal to TIMES239)

2. 30mm (equal to TIMES238)

3. 20mm (equal to TIMES236)

4. 10mm (equal to TIMES233)

5. 7mm V shape (equal to TIMES230UV)

6. 7mm U shape (equal to TIMES230U)

7. 7mm oblique stylus (equal to TIMES231)

8. 2mm oblique stylus (equal to TIMES243)

9. small hole stylus (equal to TIMES232)
