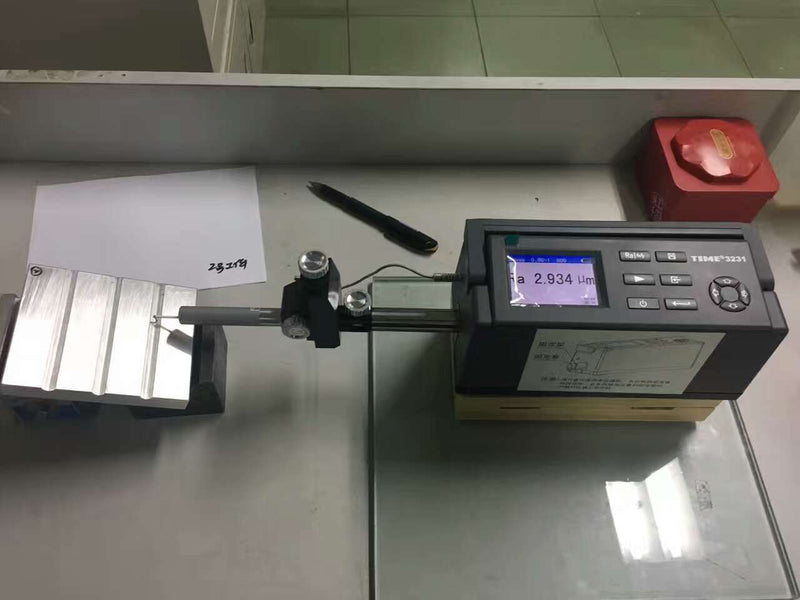

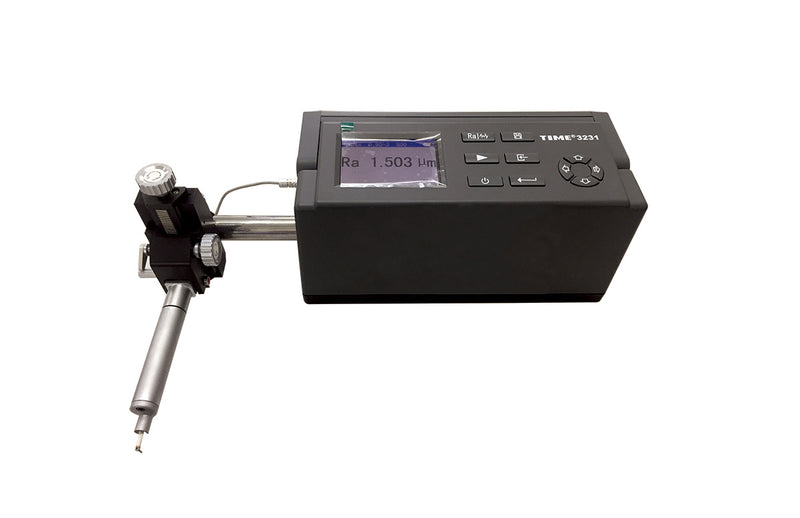

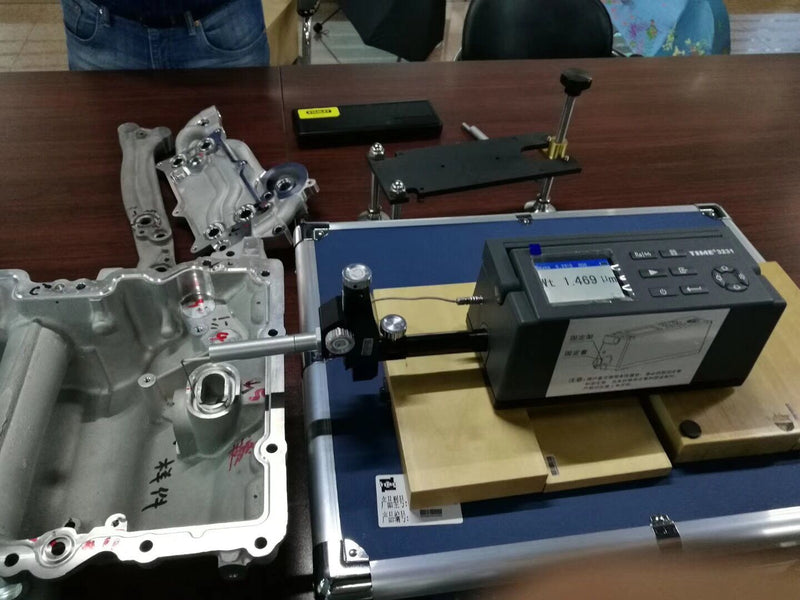

TIME3231 Surface Roughness Tester Profilometer
TIME3231 Surface Roughness Tester Profilometer
TIME3231 Surface Roughness Tester Profilometer
TIME3231 Surface Roughness Tester Profilometer

TIME3231 Surface Roughness Tester Profilometer

SKU TIME3231
$0.00 - $0.00
$0.00
$0.00 - $0.00
$0.00
Secure Payment
24/7 Customer Support
30-Day Returns
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • Shop Pay
  • Union Pay
  • Visa
Request A Quote (For Bulk Orders)
Returns & Warranty

Warranty
All products are covered by the manufacturer's warranty. Warranty terms vary by manufacturer and product.

Returns
Items can be returned within 7 days of receipt. Returned items must be unopened, unused and in their original packaging, with all accessories and documentation included.

Warranty claims and enquiries
For warranty claims, returns or product-specific enquiries, contact us at support@testingcore.com.

TIME323X series is advanced high end surface roughness measuring instruments with wide testing range (±400µm) and high accuracy (tolerance ±5%, repeatability 3%). Meanwhile, TIME323X surface roughness tester features skidless/skid measurement, which means it can reach smaller and harder-to-reach parts than other conventional tools. Up to 55 paramenters for roughness, waviness and primary profile are supported. Apart from those features mentioned above, TIME3231 is loaded with a 90° measurement function.


Features


● Integrated design, easy and convenient to use, especially for narrow spaces down to 1.5mm.

● 55 kinds of measurement parameters conform to ISO/DIN/ ANSI/JIS standards.

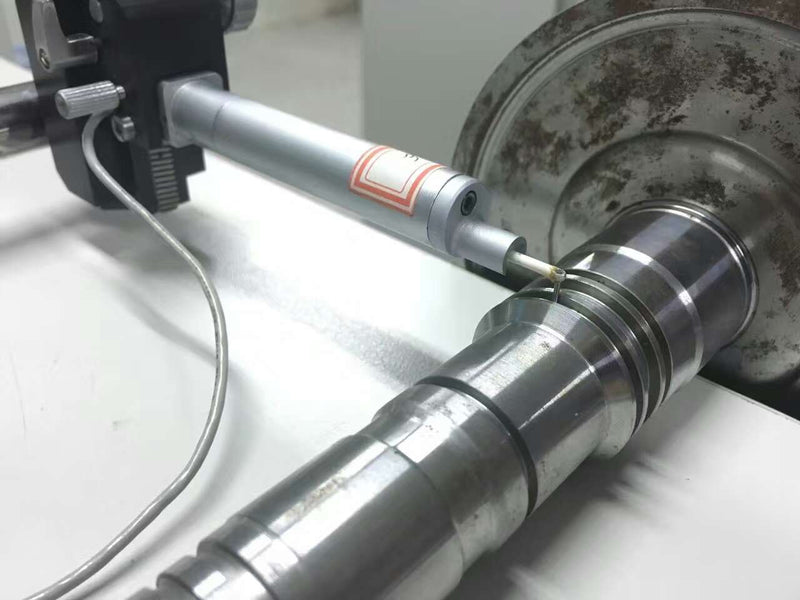

● Rectangular driver for 90° angle measurements, even without skid.

● High accuracy in the surface roughness, waviness and primary profile testing.

● LCD displays digital and graphic information.

● Numerous optional sensors to approach even the most inaccessible places, with or without leads.

● Transfer to PC via RS232 with advanced PC Software TIMESurf for more analyzing management, and data can be stored in an Excel file.

● The printer can be connected to print the digital and graphic information.

● Wide measurement range up to 800 um, with accuracy of 5% and repeatability of 3%.



Optional Accessories

Printer TA230

PC software (TIMESurf for TIME®3230)

RS232 communication cable





Specifications

Assessed profile

R (Roughness),
W (Waveness),
P (Primary profile)

Measuring range

±400μm, ±25μm

Filtering

RC, PCRC, Gauss, D-P, ISO 13565

Parameters

R: Ra,Rp,Rv,Rt,Rz,Rq,Rsk,Rku,Rc,RS,RSm,Rlo,RHSC,Rpc,Rmr(c),RzJIS,R3y,R3z
W: Wa,Wp,Wv,Wt,Wz,Wq,Wsk,Wku,Wc,WS,WSm, Wlo,WHSC,Wpc,Wmr(c),WzJIS
P: Pa,Pp,Pv,Pt,Pz,Pq,Psk,Pku,Pc,PS,PSm,Plo,PHSC,Ppc,Pmr(c),PzJIS
Rk: Rk,Rpk,Rvk,Mr1,Mr2

Cut-off length

0.08 mm, 0.25 mm, 0.8 mm, 2.5 mm, 8 mm

Max. tracing length

40mm

Analysis graphs

ADC, BAC

Evaluation length

1L-5L

Resolution

0.001μm/50μm; 0.016μm/800μm

Tolerance

±5%

Display

LCD

Memory

10 groups of primary data

Data output

RS232, USB

Power supply

Li battery / AC adapter

Dimensions (mm)

409×96×98

Weight (g)

2300
