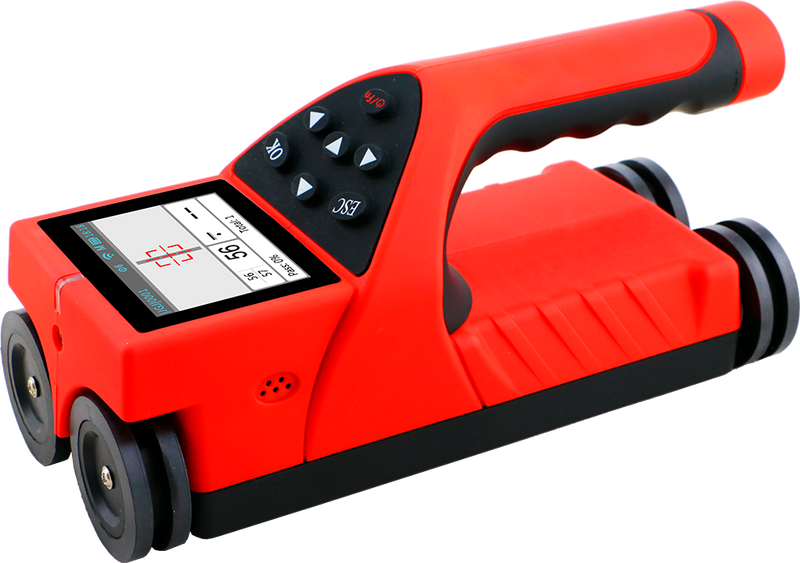

TIME TC120 Integrated Rebar Scanner

TIME TC120 Integrated Rebar Scanner

SKU TC120
$0.00 - $0.00
$0.00
$0.00 - $0.00
$0.00
Secure Payment
24/7 Customer Support
30-Day Returns
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • Shop Pay
  • Union Pay
  • Visa
Request A Quote (For Bulk Orders)
Returns & Warranty

Warranty
All products are covered by the manufacturer's warranty. Warranty terms vary by manufacturer and product.

Returns
Items can be returned within 7 days of receipt. Returned items must be unopened, unused and in their original packaging, with all accessories and documentation included.

Warranty claims and enquiries
For warranty claims, returns or product-specific enquiries, contact us at support@testingcore.com.

  • 2.8-inch high-resolution colour LCD screen (320 x 240 pixels)
  • Five scanning methods to suit different detection environments, for more flexible detection
  • Detects the position between two rebars, with an indicator light showing the steel bar position for drilling and coring
  • Supports grid scanning and profile scanning of rebar position
  • Calibration values are stored automatically in the instrument for rapid measurement, avoiding the need to calibrate before each test
  • Data storage, viewing and deletion, with capacity for 2,000 components or 200,000 measurement points
  • USB data transmission, so stored data can be transferred to a PC
  • Professional PC data analysis software available
Rebar Measuring Range Φ6–Φ50 mm
Cover Thickness Measuring Range (Range I) 2–100 mm
Cover Thickness Measuring Range (Range II) 10–200 mm
Cover Thickness Tolerance ±1 (2–60 mm); ±2 (60–80 mm); ±3 (80–100 mm); ±4 (100–133 mm); ±5 (140–169 mm); ±6 (170–200 mm)
Diameter Estimation Range Φ6–Φ32 mm
Rebar Diameter Permissible Error ±1 grade
Operating Temperature −10°C to 40°C
Relative Humidity < 90%
Dimensions 220 x 96 x 108 mm
Weight 650 g
Battery Lithium battery
Avoid water ingress
Avoid strong magnetic fields, such as large electromagnets, transformers and inverters
No corrosive gas in the atmosphere
