Gauss Calibrated Field Indicator

SKU
Original price $1,199.99 - Original price $1,199.99
Original price
$1,199.99
$1,199.99 - $1,199.99
Current price $1,199.99
Model: 10 Gauss Calibrated Field Indicator
Secure Payment
Free Shipping NZ-Wide
30-Day Returns
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • Shop Pay
  • Union Pay
  • Visa
Request A Quote (For Bulk Orders)
Shipping information

Russell Fraser Sales is based in New South Wales, Australia, and ships directly to your New Zealand address. Most orders dispatch within 3–5 business days of order placement. Estimated delivery to main New Zealand centres is 5–10 business days from dispatch. Rural and remote addresses may require additional time.

Precision NDT instruments including ultrasonic flaw detectors and thickness gauges are shipped as tracked air consignments. For time-sensitive orders, contact us before purchasing to confirm current availability and lead time.

Free shipping applies to all orders. Prices displayed are exclusive of GST. GST will be added at checkout and there are no additional charges on delivery.

Returns & warranty

Russell Fraser Sales products are covered by a 12-month manufacturer warranty against defects in materials and workmanship. This covers manufacturing faults but doesn't extend to damage from misuse, improper installation, or general wear and tear.

Returns are accepted within 30 days of delivery for products in original, unused condition with all original packaging and accessories intact. Return freight costs are the responsibility of the buyer unless the item arrived damaged or was incorrectly supplied. Items that have been used, installed, or modified are not eligible for return.

For warranty claims or return requests, contact us at sales@testingcore.com or call 09 558 3100.

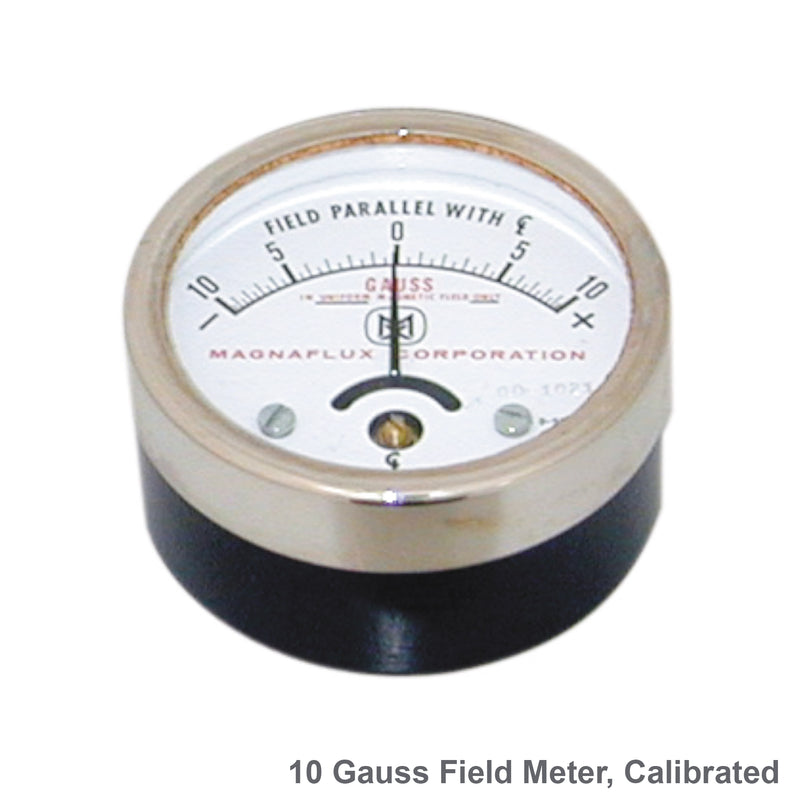

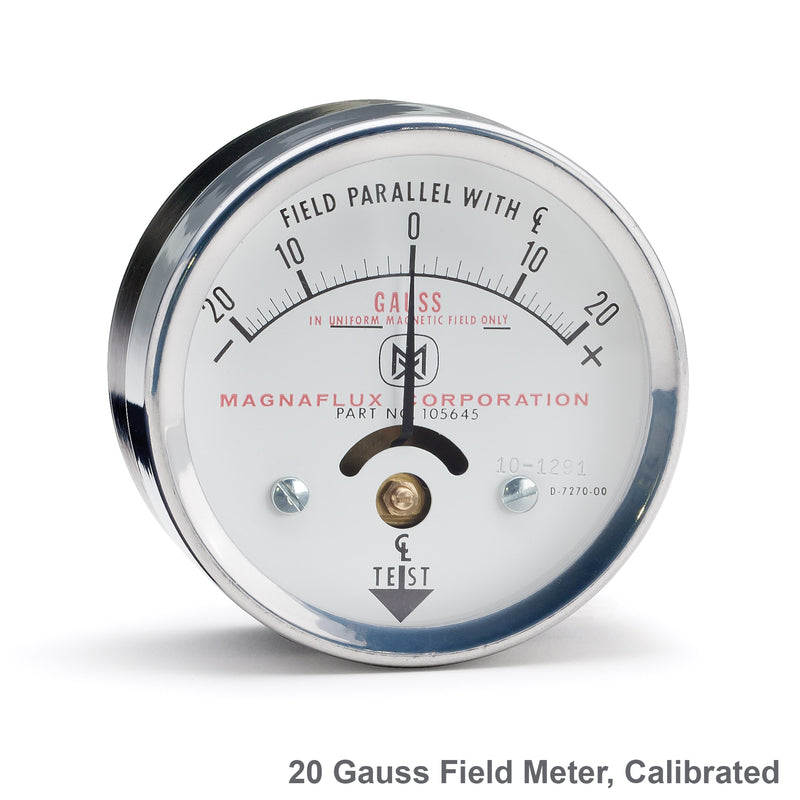

Magnaflux Magnetic Field Indicators, also known as gauss meters or magnetometers, are used to check residual magnetism after magnetic particle testing. They read the amount of residual magnetism left in a part quickly when the indicator arrow is placed against a magnetised part.

These rugged, pocket-size calibrated indicators are available in 10 gauss and 20 gauss models. Certification is provided with each, and they can be re-calibrated through Magnaflux Authorised Service Centres.

  • Rugged, pocket-size design
  • Calibrated, with certification provided
  • Centre-zero scale shows magnetic polarity: plus (+) for a North pole, minus (−) for a South pole
  • Can be re-calibrated through Magnaflux Authorised Service Centres
10 Gauss Calibrated 20 Gauss Calibrated
Part Number 505056 105645
Scale Range +10 to −10 gauss from 0 centre +20 to −20 gauss from 0 centre
Large Divisions 1 gauss 2 gauss
Small Divisions ½ gauss 1 gauss
Accuracy ±0.5 gauss ±1.0 gauss
Field Exposure Withstands fields as strong as 400 oersteds without affecting calibration
Certification Provided Provided
Re-calibration Every 6 months Every 6 months
Standards Compliance ASTM E709, ASTM E1444, ASME BPVC Section V ASTM E709, ASTM E1444, ASME BPVC Section V
NDT Method Fluorescent and visible magnetic particle testing
Use Checking residual magnetism remaining in a part after magnetisation
20 Gauss Model General purpose use as may be required in various demagnetisation specifications
Placement Place the lower rim of the indicator, below the arrow, closest to the part. It is the most sensitive part of the meter. Place it near a point of flux leakage, such as the end of a bar-shaped part
Readings Readings in gauss relate only to the magnitude of external leakage fields and should not be taken as the flux density within the part
Caution A strong enough field may throw the indicator considerably off scale. Contact with the field of a demagnetising coil, or a conductor carrying heavy alternating current, may demagnetise the indicator
