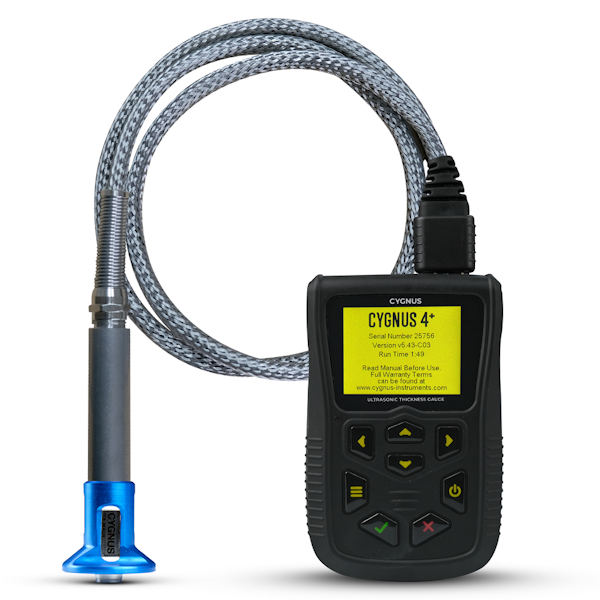

Cygnus 4+ Mk5 General Purpose Ultrasonic Thickness Gauge

SKU KIT-Cyg4+
Original price $6,499.99 - Original price $6,499.99
Original price
$6,499.99
$6,499.99 - $6,499.99
Current price $6,499.99
Availability:
10 in stock, ready to be shipped
Secure Payment
Free Shipping NZ-Wide
30-Day Returns
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • Shop Pay
  • Union Pay
  • Visa
Request A Quote (For Bulk Orders)
Shipping information

Russell Fraser Sales is based in New South Wales, Australia, and ships directly to your New Zealand address. Most orders dispatch within 3–5 business days of order placement. Estimated delivery to main New Zealand centres is 5–10 business days from dispatch. Rural and remote addresses may require additional time.

Precision NDT instruments including ultrasonic flaw detectors and thickness gauges are shipped as tracked air consignments. For time-sensitive orders, contact us before purchasing to confirm current availability and lead time.

Free shipping applies to all orders. Prices displayed are exclusive of GST. GST will be added at checkout and there are no additional charges on delivery.

Returns & warranty

Russell Fraser Sales products are covered by a 12-month manufacturer warranty against defects in materials and workmanship. This covers manufacturing faults but doesn't extend to damage from misuse, improper installation, or general wear and tear.

Returns are accepted within 30 days of delivery for products in original, unused condition with all original packaging and accessories intact. Return freight costs are the responsibility of the buyer unless the item arrived damaged or was incorrectly supplied. Items that have been used, installed, or modified are not eligible for return.

For warranty claims or return requests, contact us at sales@testingcore.com or call 09 558 3100.

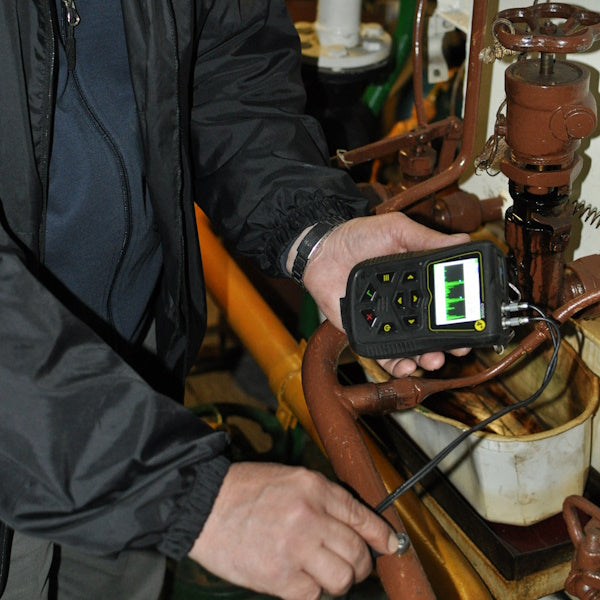

The Cygnus 4+ Mk5 is a small, tough, and accurate ultrasonic thickness gauge, built for the harshest environments and toughest NDT jobs. It has a simple keypad, intuitive menus, and a colour LCD display that stays readable in any lighting.

Its twin-shot injection moulded enclosure combines a soft, durable TPE outer skin with a strong inner shell, keeping the electronics fully sealed from the outside world.

It also comes with sequential data logging and an A-Scan display, plus three measurement modes:

  • Multiple-Echo, for accurate readings that look past protective coatings up to 20 mm thick
  • Echo-Echo, for painted metals with heavy back-wall corrosion or pitting
  • Single-Echo, for uncoated surfaces with heavy front-face or back-wall corrosion, and attenuative materials like cast metals, plastics, or composites

Compatible with the Cygnus single crystal probe range. Browse all ultrasonic thickness gauges.Ā

  • Multiple-Echo mode gives reliable, accurate readings through coatings
  • Also offers Single-Echo and Echo-Echo measuring modes
  • Large, bright colour LCD screen with automatic backlight
  • Min/max limit functions with a visual and vibrate alert
  • Rugged enclosure rated for shock and impact to MIL-STD-810G
  • Sealed to IP67 (MIL-STD-810G) against the elements
  • Deep-coat mode measures through coatings up to 20mm thick
  • Echo-strength bars help guide thickness readings in Multiple-Echo mode
  • TPE over-moulded housing
  • Buttons rated for at least 100,000 presses
  • Battery compartment is fully sealed, so any leaks stay contained

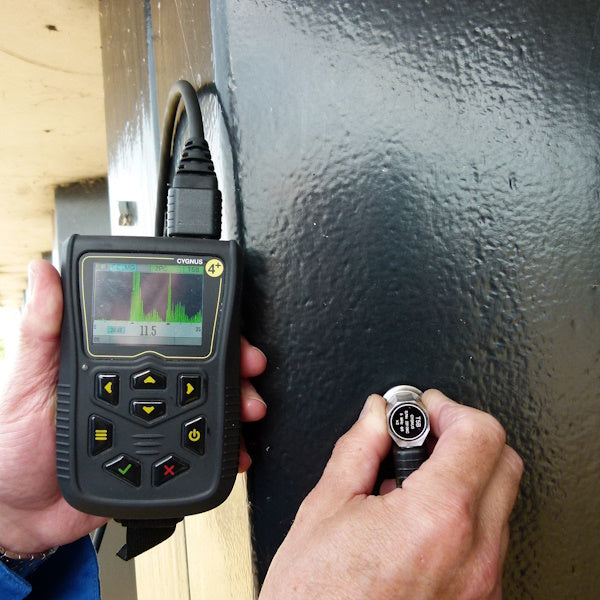

  • A-Scan display included
  • MSI (Measurement Stability Indicator) available in Single-Echo and Echo-Echo modes
  • Logs data sequentially as you go
  • Automatically recognizes S2C and twin crystal probes
Measurement Modes Multiple-Echo, Echo-Echo, Single-Echo
Deep-Coat Mode Measures through coatings up to 20mm thick
Display Colour LCD with automatic backlight, A-Scan display
Environmental Sealing IP67 (MIL-STD-810G)
Shock / Impact Rating MIL-STD-810G
Compatible Probes S2C and twin crystal probes (automatic recognition)
Button Life Minimum 100,000 depressions
Battery Compartment Fully sealed
Data Logging Sequential data logging
