Dynasonic Leeb & Ultrasonic Hardness Tester UCI-4000 – Dual Method

SKU UCI-4000H
Original price $10,999.99 - Original price $10,999.99
Original price
$10,999.99
$10,999.99 - $10,999.99
Current price $10,999.99
Availability:
10 in stock, ready to be shipped
Secure Payment
Free Shipping NZ-Wide
30-Day Returns
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • Shop Pay
  • Union Pay
  • Visa
Request A Quote (For Bulk Orders)
Shipping information

Qualitest products ship internationally from the United States directly to your New Zealand address. Most orders dispatch within 5-10 business days of order placement. Estimated delivery to New Zealand is 10-20 business days from dispatch, depending on freight mode, customs clearance, and carrier schedules.

Delivery timeframes for larger or heavier items may vary. Some products may be subject to extended lead times depending on stock availability at the time of order. For time-sensitive orders, contact us before purchasing to confirm current lead time.

Free shipping applies to all orders. Prices displayed are exclusive of GST. GST will be added at checkout and all import and customs costs are managed by TestingCore - there are no additional charges on delivery.

Returns & warranty

Qualitest products are covered by manufacturer warranties against defects in materials and workmanship. Warranty periods vary by product - many instruments in the Qualitest range carry a 12-month manufacturer warranty, and selected products such as the Qualitest CMX ultrasonic thickness gauge series carry a 2-year warranty. Contact us for specific warranty details for the product you are purchasing.

Returns are accepted within 30 days of delivery for products in original, unused condition with all original packaging and accessories intact. Due to the international nature of these shipments, return freight costs are the responsibility of the buyer unless the item arrived damaged or was incorrectly supplied. Items that have been used, installed, calibrated, or modified are not eligible for return.

For warranty claims or return requests, contact us at sales@testingcore.com or call 09 558 3100.

The Dynasonic Ultrasonic Hardness Tester UCI-4000 is a versatile portable hardness tester built around a dual testing method - combining ultrasonic contact impedance (UCI) and dynamic rebound (Leeb) in a single instrument.

This pairing gets around a limitation each method has on its own: Leeb struggles to assess plating and coating hardness (where UCI excels), while UCI has trouble with coarse crystal materials common in casting (where Leeb excels).

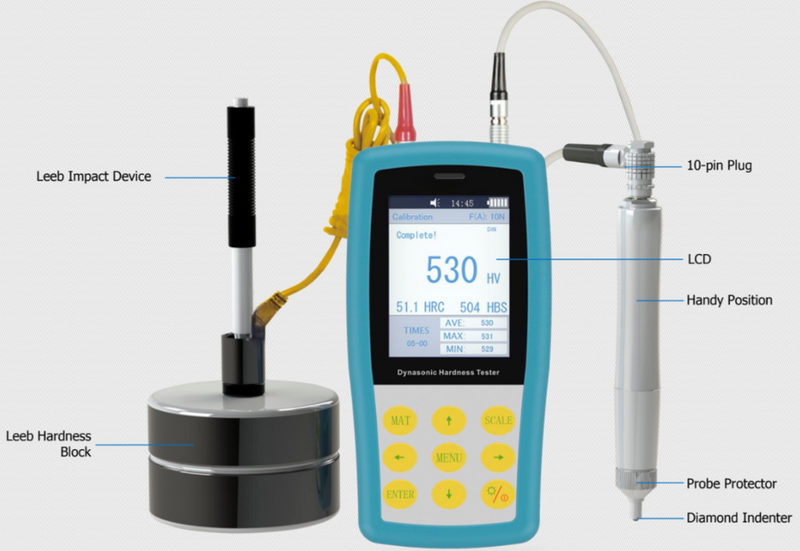

The UCI-4000 works with both UCI motorized and manual probes, as well as the Leeb impact probe, so it can handle materials with fine or coarse crystal structures alike across the metal industry.

Its UCI probe system is particularly good at measuring the hardness of coatings and platings - chrome, copper plating, carburized layers, and nitriding layers among them. The dynamic Leeb probe system, meanwhile, is built for coarse materials like castings and forgings.

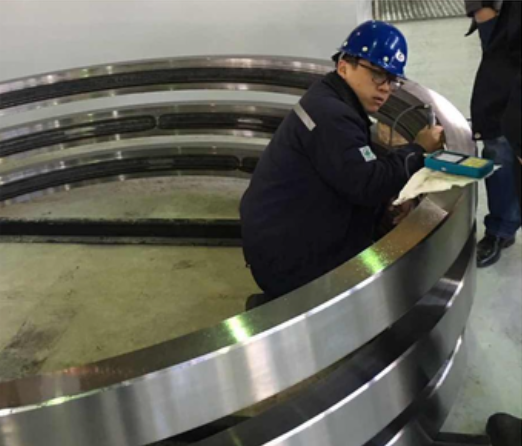

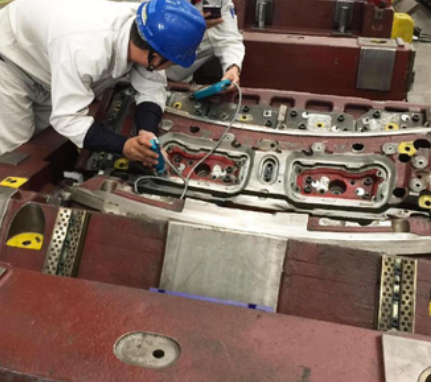

As a non-destructive testing (NDT) hardness tester, the UCI-4000 works well for finished products - molds, gears, shafts, rods, screws, and rails - since the contact indentation it leaves is too small to notice.

It complies with industry standards including ASTM A1038-2005 and DIN 50159-1-2008.

Browse our full portable hardness testers range

  • One instrument, two applications - works with both ultrasonic (UCI) probes and the Leeb impact device
  • Metal shell shields against electromagnetic interference and adds stability
  • Colour screen shows current, cumulative, Max, Min, and Ave values
  • Bluetooth supports wireless printing and data transfer
  • Mass storage holds up to 1,000 groups of measurement data, plus 20 calibration profiles
Model UCI-4000H (Manual)
Hardness Scales HV, HRC, HRA, HRB, HB, HLD, HS
Measuring Range HV: 50-1599; HRC: 20-68; HB: 76-650; HRB: 41-105; HLD: 170-960
Accuracy HV: ±3%; HRC: ±1.5; HB: ±3%; HL: ±8
Resolution 0.1HR, 1HV, 1HB, 1HLD, 0.1HS
Ultrasonic Probes (Manual) HP-1K, HP-2K, HP-5K, HP-10K
Impact Devices Type D (standard); optional DC, DL, D+15, C, G
Data Storage 1,000 test results, 20 calibration datasets
Connectivity Bluetooth (wireless data transfer/printing), USB
Battery 4.2V lithium, USB charging
Runtime ~10 hours (backlight off)
Operating Environment -10°C to 50°C, 30-80% RH
Dimensions 160 × 80 × 31 mm
Weight ≤500g (probe excluded)
Standards Compliance ASTM A1038-2005, ASTM A956, DIN 50159-1-2008
Instrument Main Body Included
Manual Probe 2kg HP-2K
Impact Device Type D
Rockwell Hardness Block Included
Leeb Hardness Block Included
Probe Cable Included
USB Cable Included
Accessories Box Included
Operation Manual Included
