QualiNDT-UT81 Concrete Ultrasonic Tester – Pulse Velocity (UPV)

SKU QualiNDT-UT81
Original price $11,349.99 - Original price $11,349.99
Original price
$11,349.99
$11,349.99 - $11,349.99
Current price $11,349.99
Availability:
10 in stock, ready to be shipped
Secure Payment
Free Shipping NZ-Wide
30-Day Returns
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • Shop Pay
  • Union Pay
  • Visa
Request A Quote (For Bulk Orders)
Shipping information

Qualitest products ship internationally from the United States directly to your New Zealand address. Most orders dispatch within 5-10 business days of order placement. Estimated delivery to New Zealand is 10-20 business days from dispatch, depending on freight mode, customs clearance, and carrier schedules.

Delivery timeframes for larger or heavier items may vary. Some products may be subject to extended lead times depending on stock availability at the time of order. For time-sensitive orders, contact us before purchasing to confirm current lead time.

Free shipping applies to all orders. Prices displayed are exclusive of GST. GST will be added at checkout and all import and customs costs are managed by TestingCore - there are no additional charges on delivery.

Returns & warranty

Qualitest products are covered by manufacturer warranties against defects in materials and workmanship. Warranty periods vary by product - many instruments in the Qualitest range carry a 12-month manufacturer warranty, and selected products such as the Qualitest CMX ultrasonic thickness gauge series carry a 2-year warranty. Contact us for specific warranty details for the product you are purchasing.

Returns are accepted within 30 days of delivery for products in original, unused condition with all original packaging and accessories intact. Due to the international nature of these shipments, return freight costs are the responsibility of the buyer unless the item arrived damaged or was incorrectly supplied. Items that have been used, installed, calibrated, or modified are not eligible for return.

For warranty claims or return requests, contact us at sales@testingcore.com or call 09 558 3100.

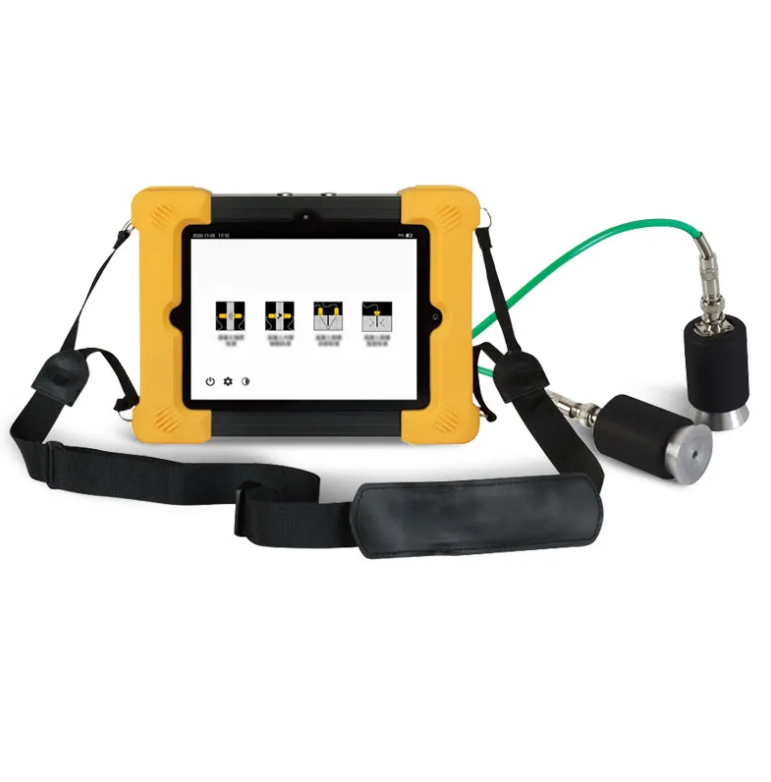

The QualiNDT-UT81 is a versatile, advanced ultrasonic tester built for precise concrete analysis. It reads concrete strength, crack depth, crack width, and internal defects in real time, right off its 8-inch sunlight-readable touchscreen. An automatic trigger and solid data-analysis algorithms take care of accuracy, and it hooks up to a PC when you need to keep working on the data afterward. Compact, durable, and built to meet industry standards, the UT81 is a dependable tool for modern concrete testing.

Applications:

  • Combined ultrasonic-rebound method for evaluating concrete strength
  • Locating and detecting internal defects in concrete
  • Measuring concrete crack depth
  • Measuring concrete crack width
  • 8-inch color LCD touchscreen (1024x768) stays readable even out in direct sunlight
  • Handles strength, crack depth, crack width, and defect detection - all from the one device
  • An advanced algorithm picks up first arrival time and amplitude automatically
  • First arrival time, wave speed, and amplitude all show up together, in real time
  • You can correct first arrival time by hand if it's ever needed
  • Reviewing, retesting, or clearing old data is quick and simple

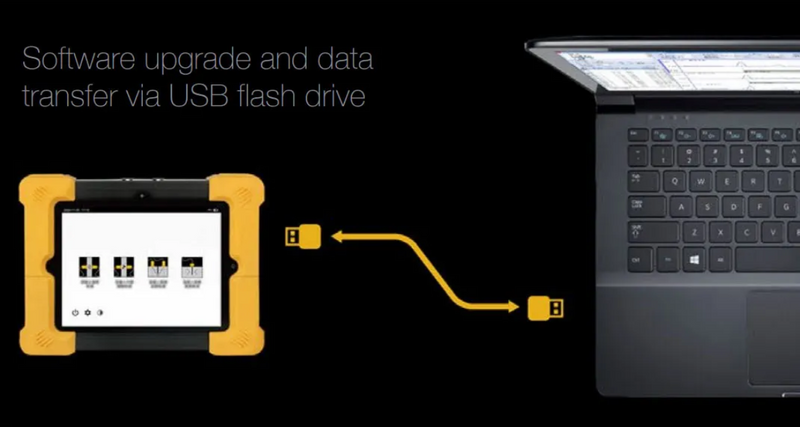

  • Runs the analysis on-site, then sends data over to a PC when there's more work to do
  • Meets JGJ and a number of other industry standards
Display 8-inch LCD touchscreen (1024x768)

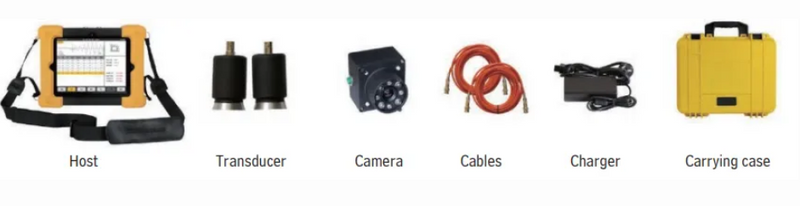

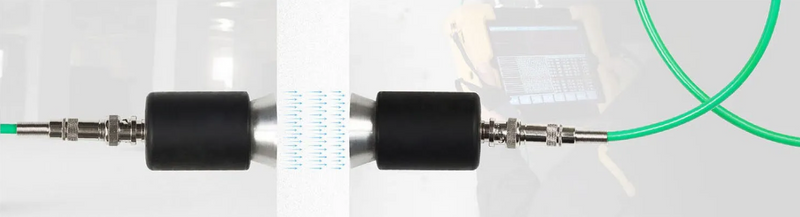

Transducers 2 plane transducers
Trigger Mode Automatic
Sampling Interval 0.025μs-2.0μs
Sampling Length 1024
Receiver Sensitivity <10μv
Acoustic Time Range 0-99999μs
Acoustic Time Accuracy 0.05μs
Amplitude Range 0-170dB
Emission Voltage 500V, 1000V
Emission Pulse Width 20μs-20ms
Memory 2G + 4G (USB flash)
Battery Life >8 hours operation
Dimensions 255 × 188 × 63mm
Weight 2.8 kg
